The Gigabyte X870E EAGLE X3D WIFI7 is yet another AM5 refresh motherboard but with a difference, in that it's a no-frills motherboard offering that still packs premium functional features, making it suitable for end-users looking to build a higher-end PC without any bling and fuss.

As you might have surmised from ALKtech's coverage of new AM5 motherboards in the recent months, AM5 motherboard refresh season is in full swing, and for this article, we'll be taking a look at yet another refreshed AM5 motherboard that's kind of a unique offering, in that it features a high-end chipset in a no-frills package - the Gigabyte X870E EAGLE X3D WIFI 7.

Featuring support for AMD's "Zen 5" Ryzen 9000 series of processors, the Ryzen 8000 series of APUs and CPUs, as well as the older Ryzen 7000 series of CPUs, this motherboard will in all likelihood support AMD's next-generation "Zen 6" processors when they launch (perhaps at the end of this year or early next year). As a product offering from Gigabyte's value-oriented "EAGLE" line-up, the X870E EAGLE X3D WIFI7 comes equipped with high-end features but without aesthetic bells and whistles, making this perfect for folks who are looking for a motherboard that simply gets the job done without any fuss - we're talking a decent VRM setup that should handle the entirety of AMD's Ryzen 9000 series with ease, PCIe 5.0 support for a graphics card and a M.2 drive, 5 Gigabit Ethernet with a full-fat WIFI7 module that supports the 320 MHz channel width, amongst other features. Read on to learn more about this motherboard!

Summary of Specifications

Processor Support: AMD Ryzen 9000/8000/7000 series processors
Chipset: AMD X870E
Memory: 4x DDR5 slots, max 256GB, up to DDR5 9000 support (as of March 2026)
Audio: Realtek ALC1220 audio codec
LAN: Realtek RTL8126 5 Gigabit Ethernet
WIFI: Qualcomm QCNCM865 WIFI 7 module with built-in Bluetooth 5.4
Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (runs at x4 mode), 1x PCIe 3.0 x16 (runs at x2 mode)
Storage: 4x SATA III, 1x PCIe 5.0 x4 M.2, 3x PCIe 4.0 x4 M.2 (M.2 slots support NVMe drives only)
Form Factor: ATX
Official Product Page: https://www.gigabyte.com/Motherboard/X870E-EAGLE-X3D-WIFI7

Do note that PCIe 5.0 is supported only when a Ryzen 9000 or Ryzen 7000 series CPU is installed on this motherboard - the Ryzen 8000 series of APUs and CPUs only support the PCIe 4.0 standard.

Packaging & Contents

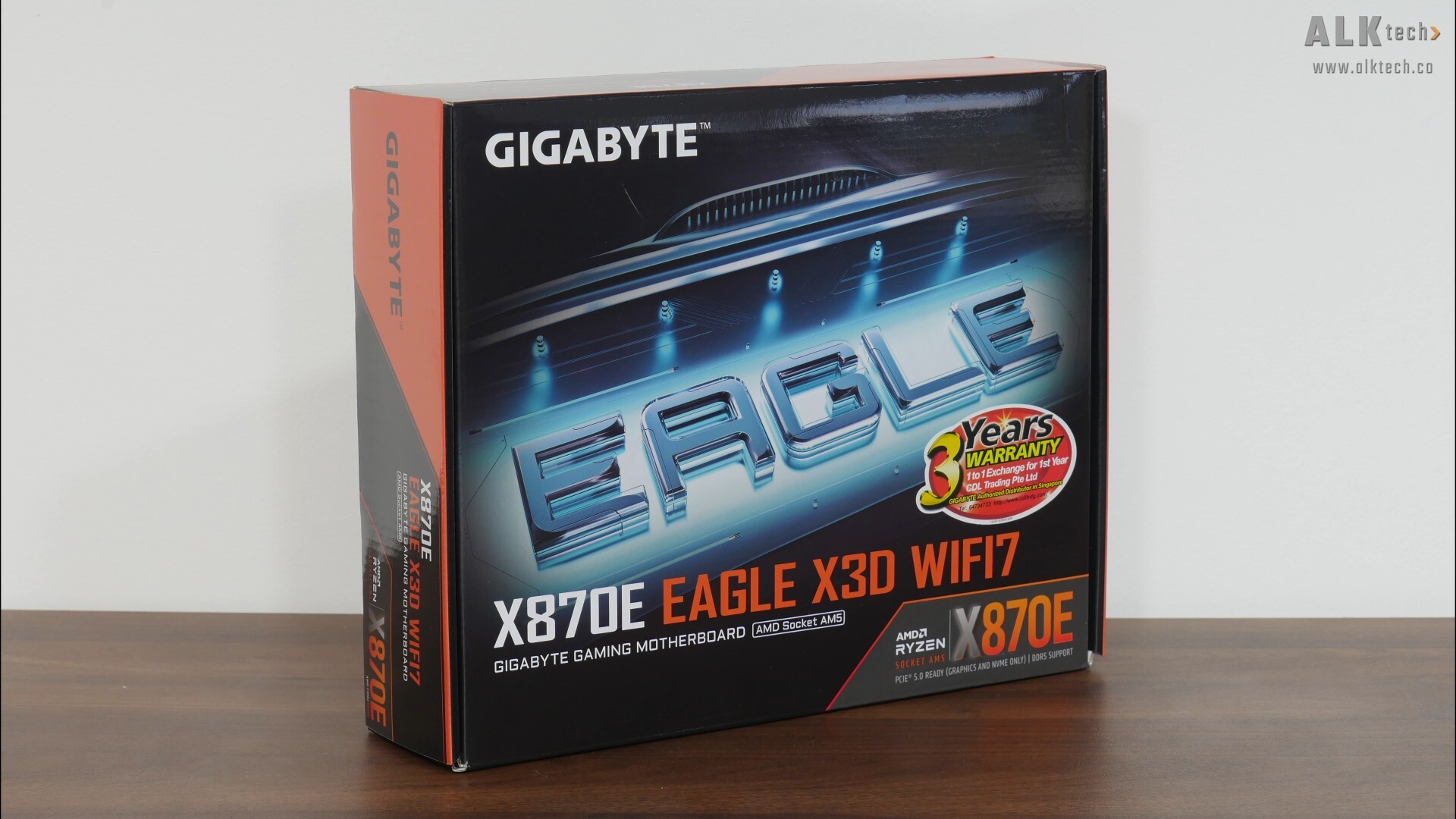

The board comes in a box that has an "EAGLE" wordmark proudly emblazoned on the front, and over on the rear, we get the usual summary of specs for this board.

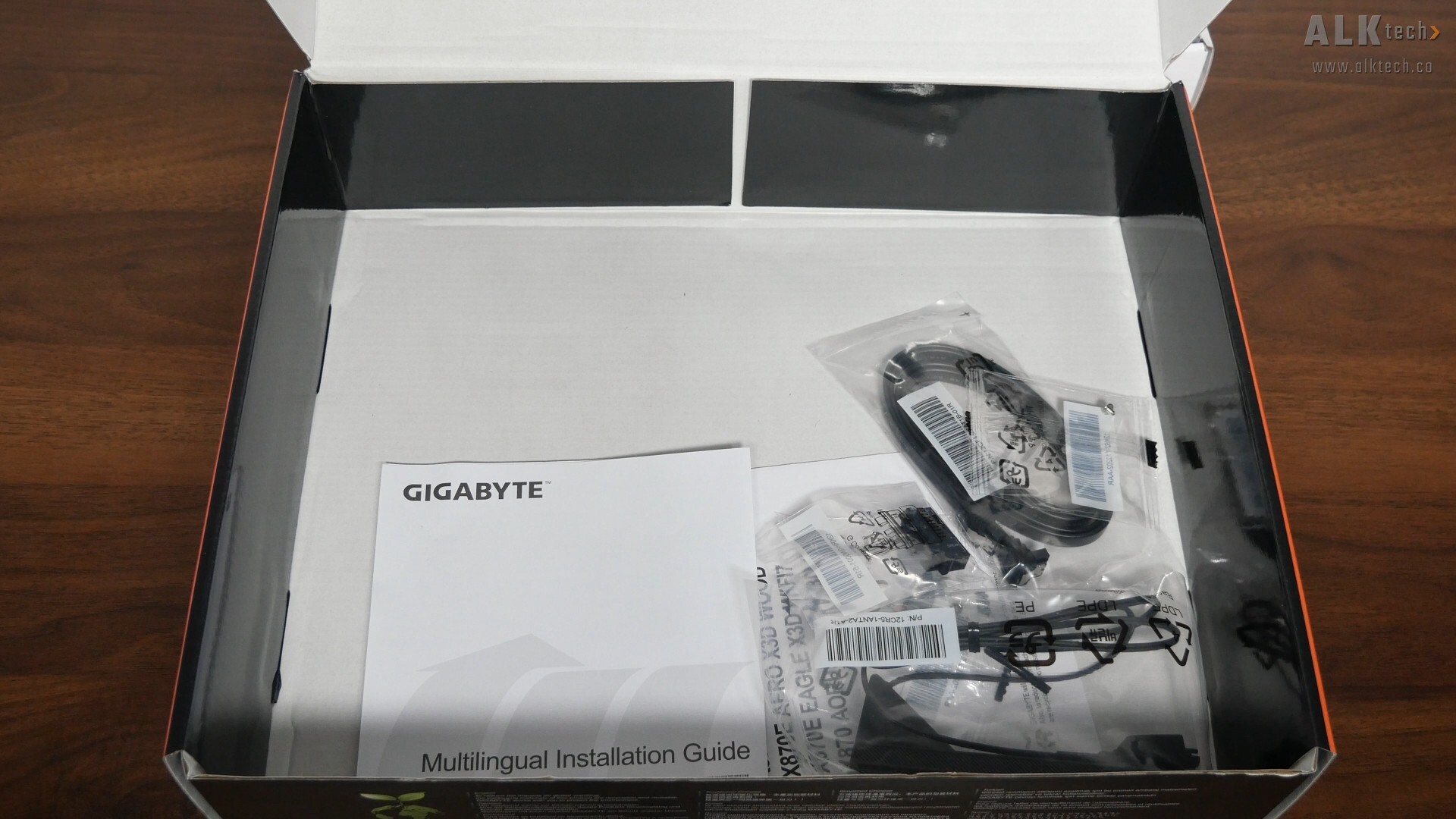

The motherboard comes with the following accessories:

• WIFI antenna
• 2x SATA III cables
• 1x G Connector
• 3x packs of M.2 drive screws
• Multilingual installation guide
• Regulatory information leaflet

Board Aesthetics

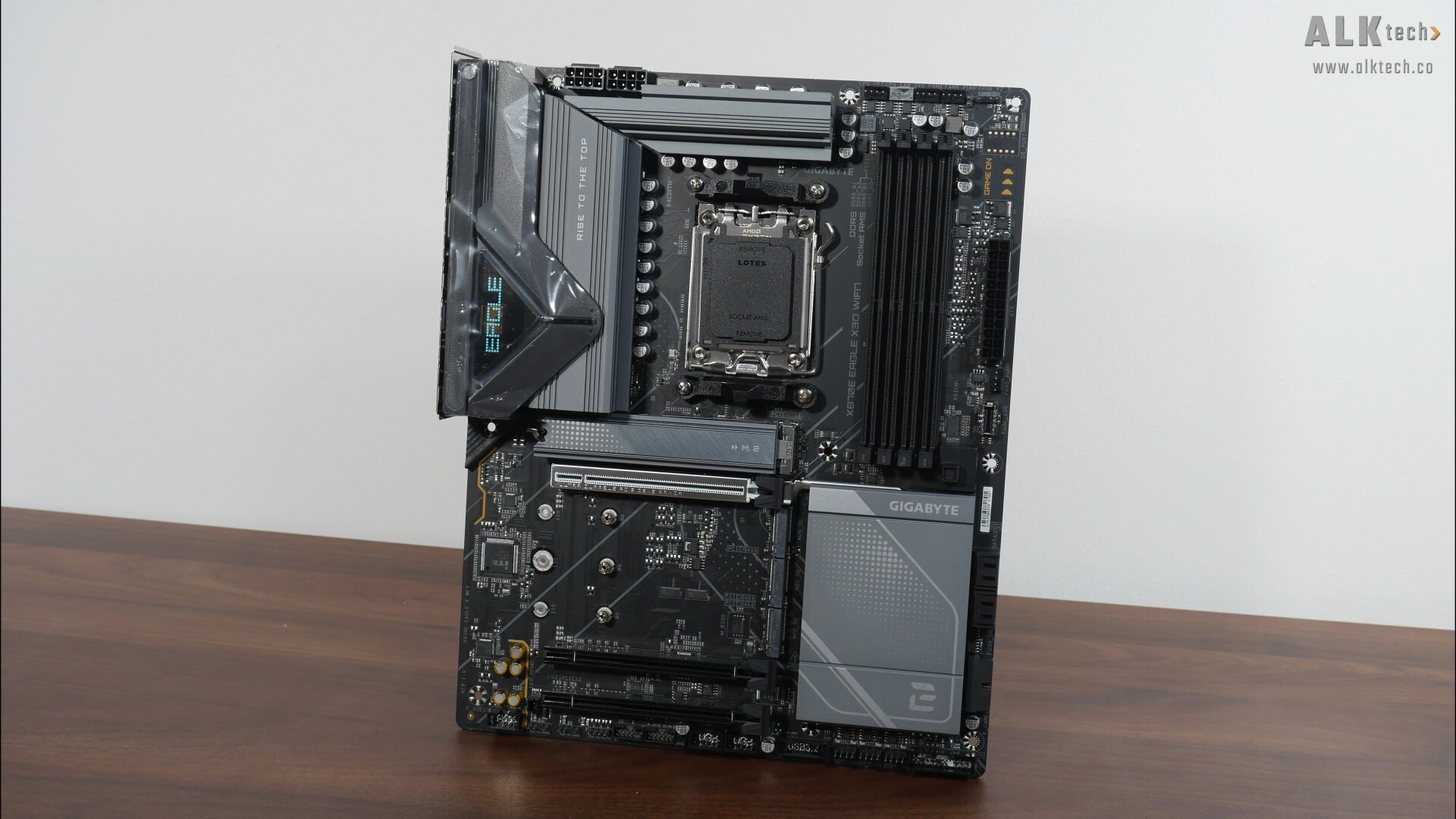

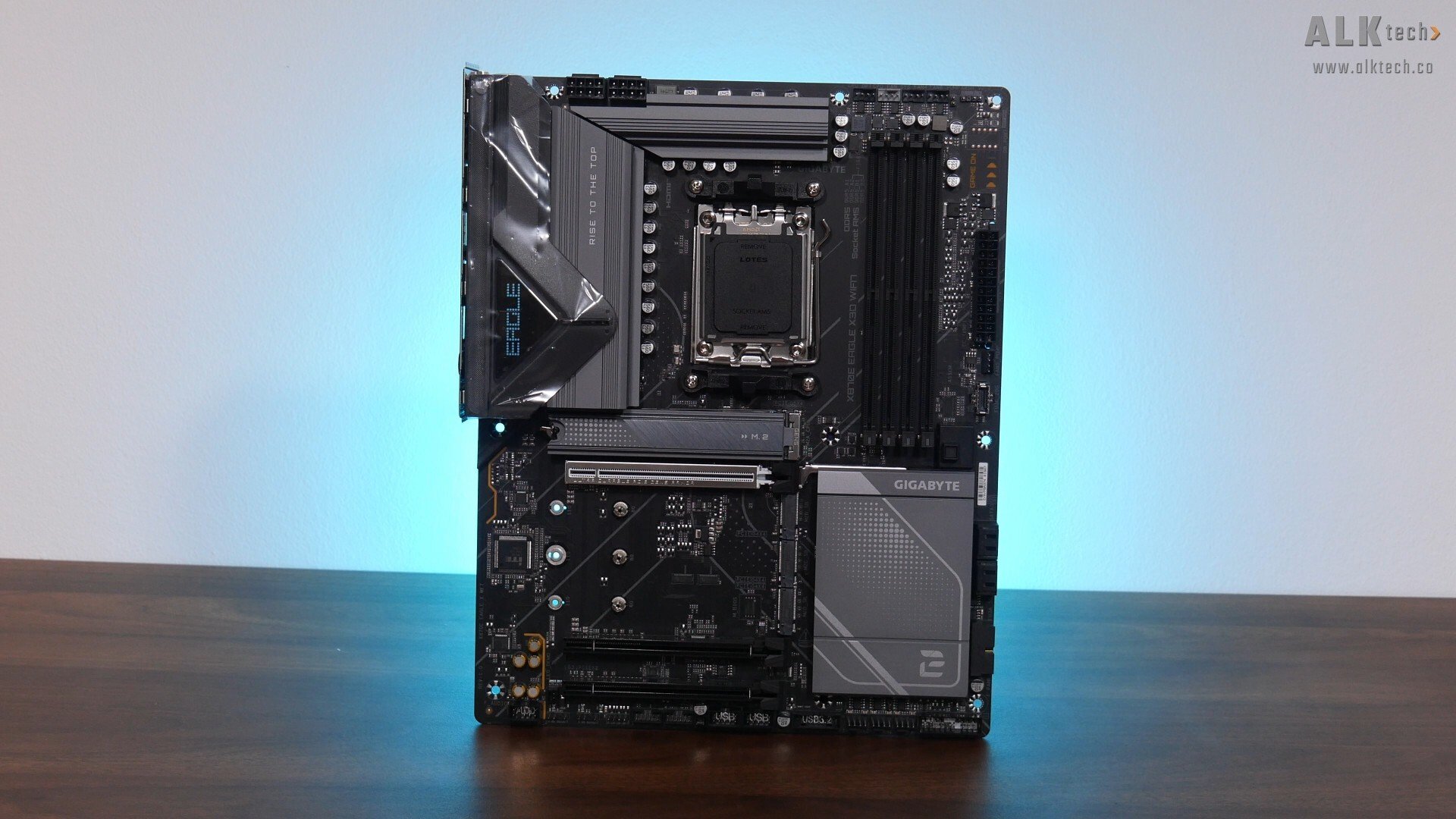

On to the board itself, we see that Gigabyte has gone for a black-coloured PCB and grey heatsinks that feature splashes of light grey/silver motifs for added visual interest.

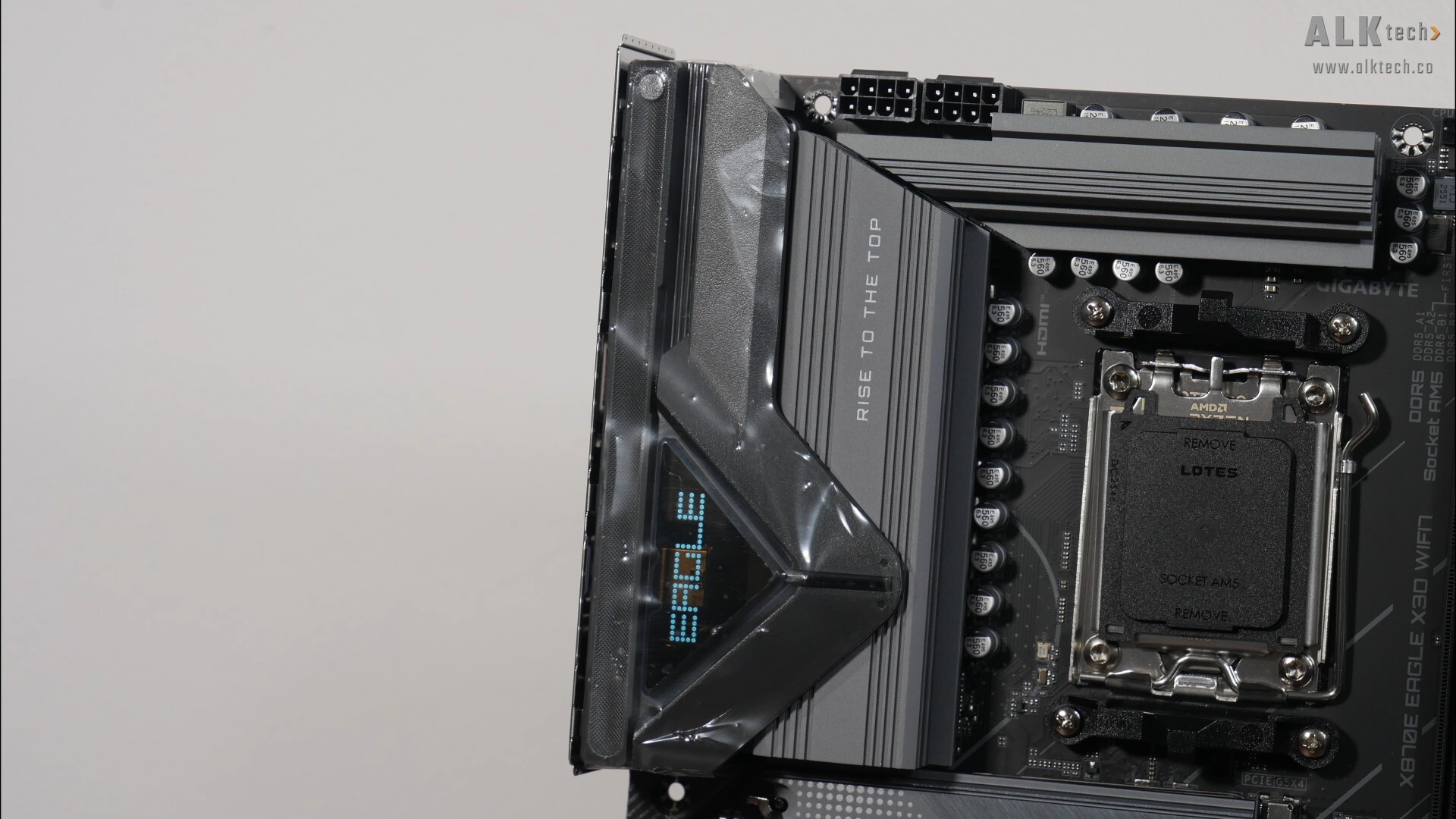

The board comes with an integrated I/O shield design, where we get an “EAGLE” wordmark in blue for a touch of pop. Seeing as this board doesn’t belong to me, I wasn’t able to remove the protective plastic film attached to the I/O shield shroud.

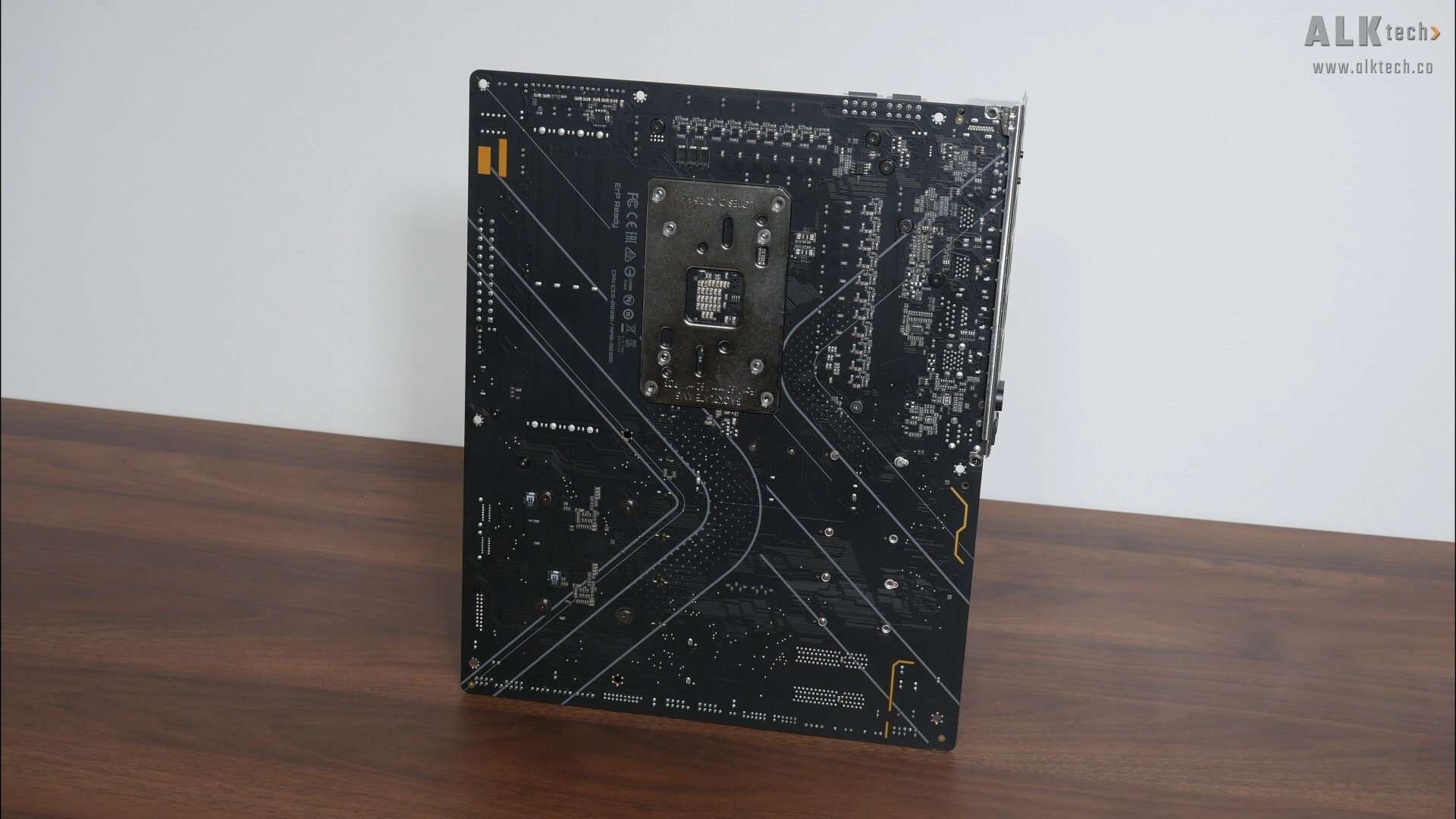

The rear of the motherboard is unremarkable and this is unsurprising really, seeing as this is intended to be a no-frills motherboard after all.

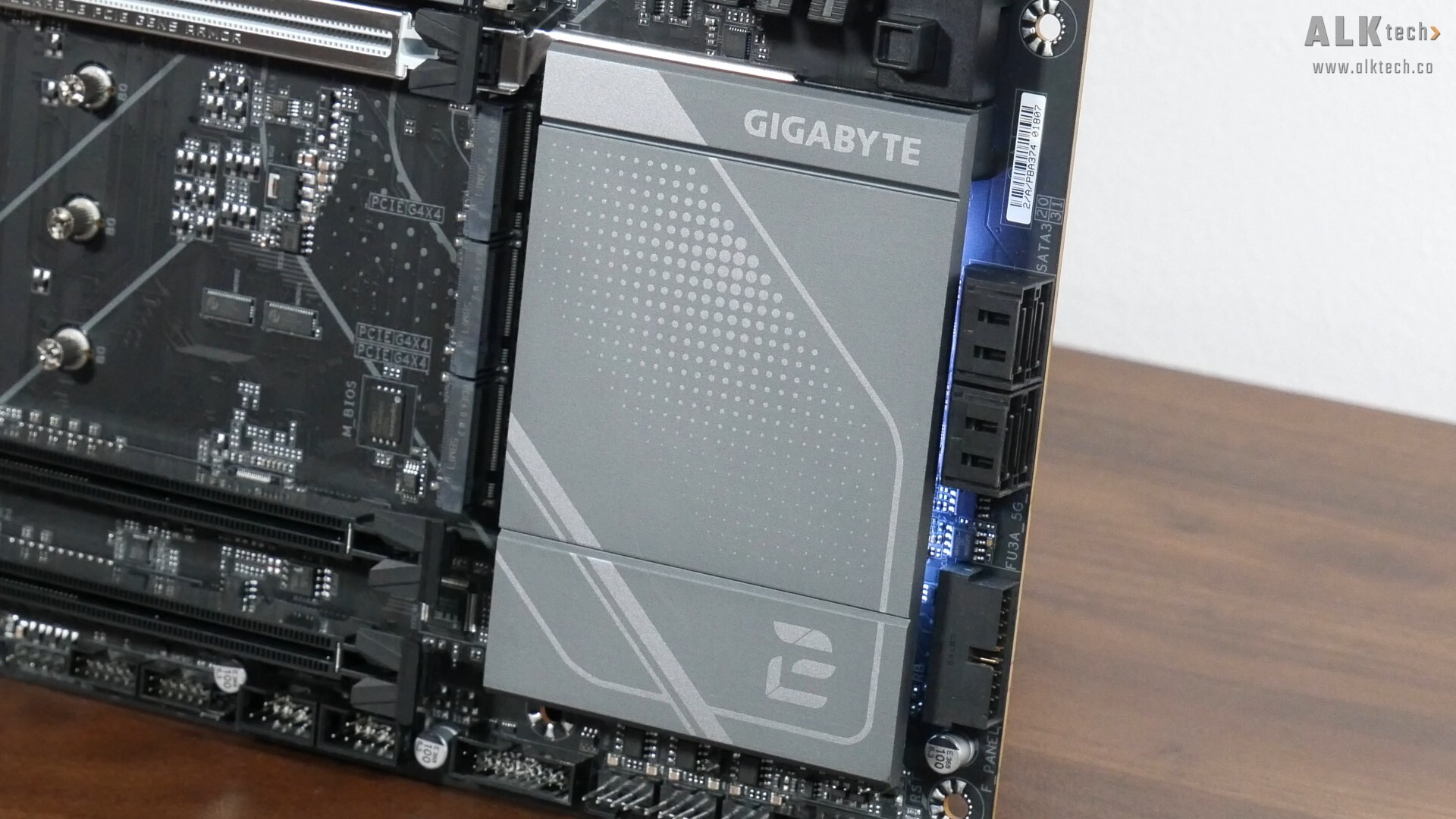

Fans of RGB lighting for their PC builds will be pleased to note that the board comes with built-in RGB LEDs that can be found beneath the passive chipset heatsink. The lighting effects of these LEDs can be configured via the Gigabyte Control Center app.

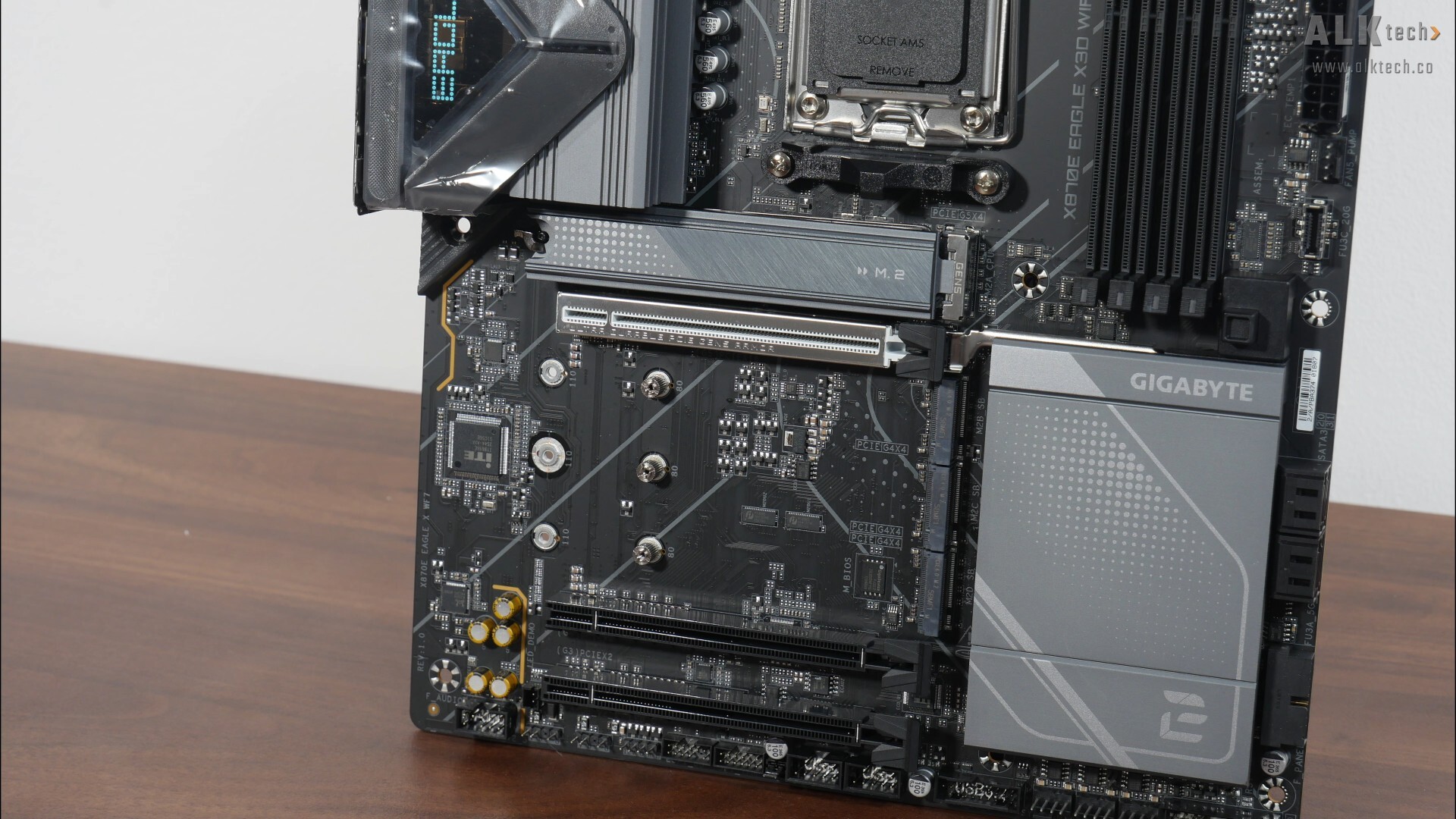

For M.2 drive cooling, Gigabyte’s included a single dedicated heatsink for the primary PCIe 5.0 x4 M.2 slot, and as can be seen, the remaining three M.2 slots (PCIe 4.0 x4) do not have any heatsink coverage at all.

VRM & Memory Support

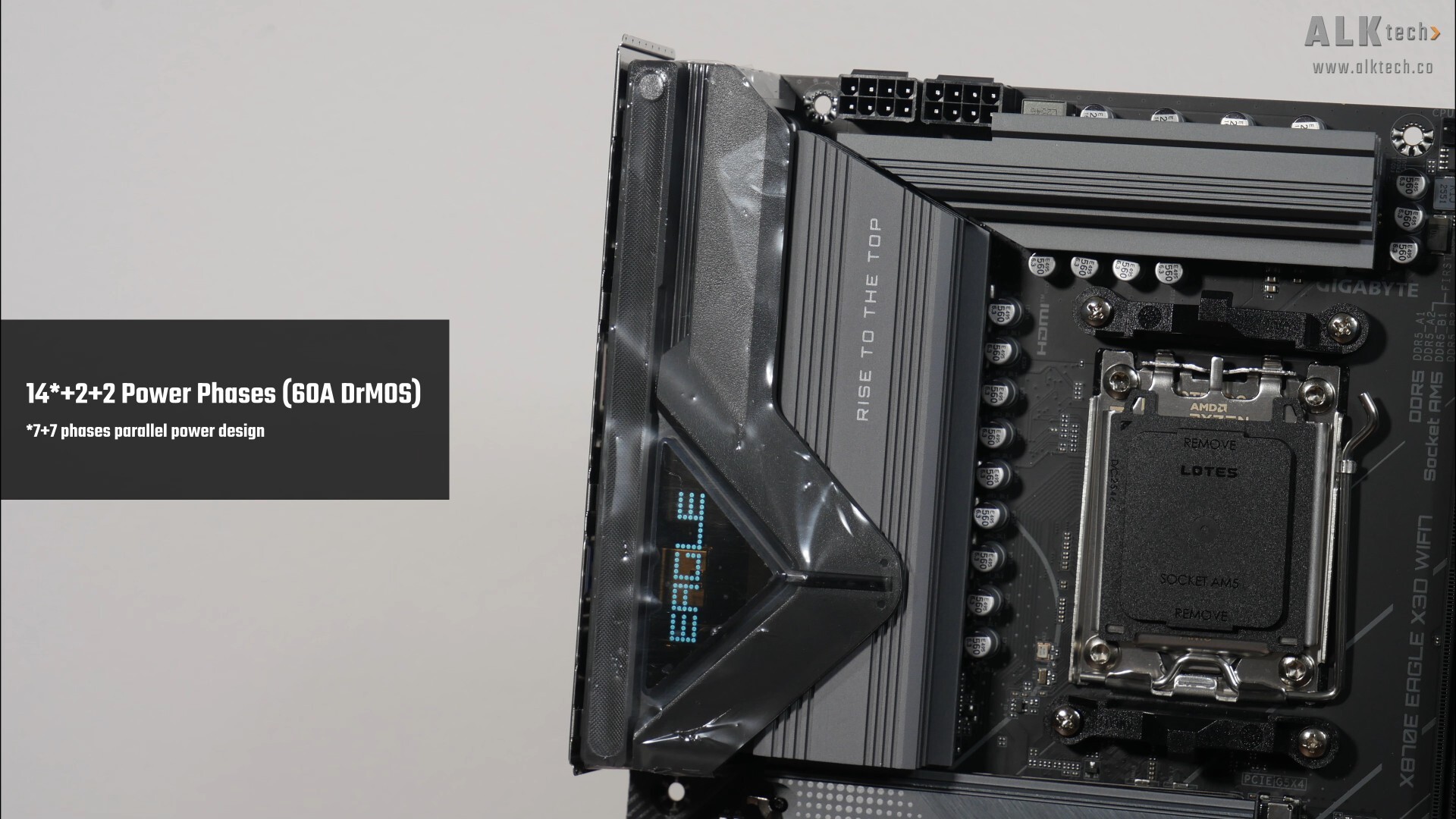

The VRM heatsinks for this board are decently-sized, and Gigabyte's included 14+2+2 power phases with 60A DrMOS power stages. In case you’re wondering, the X870E EAGLE X3D WIFI7 uses an eight-layer PCB design, which is pretty premium.

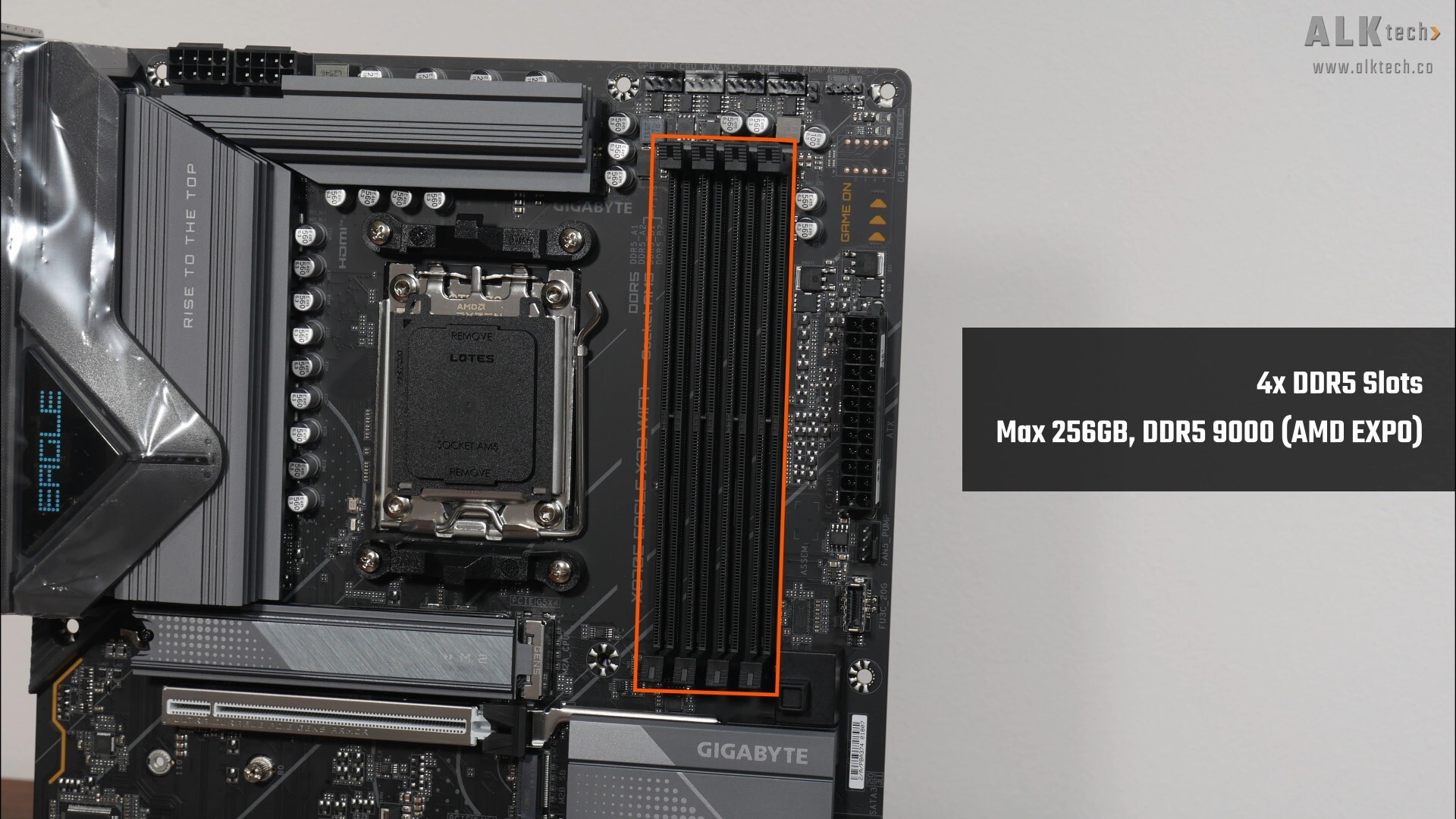

For memory support, the X870E EAGLE X3D WIFI7 comes with four DDR5 slots that as of the time of publishing this video, features support for up to 256GBs of RAM and the DDR5 9000 standard when overclocked.

Front Panel USB Headers

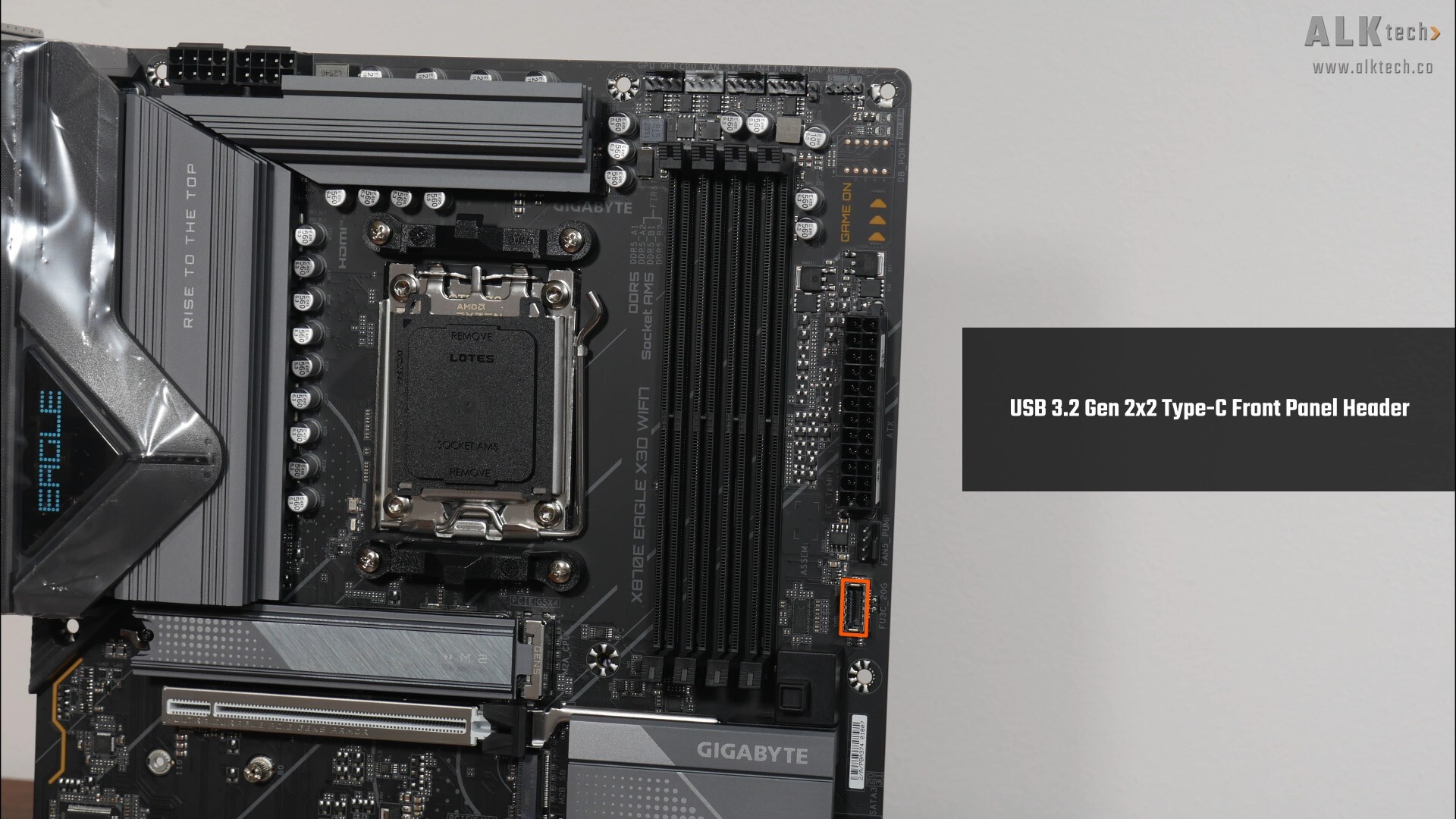

In terms of front panel USB connectivity, we get a USB 3.2 Gen 2x2 Type-C front panel header next to the RAM slots.

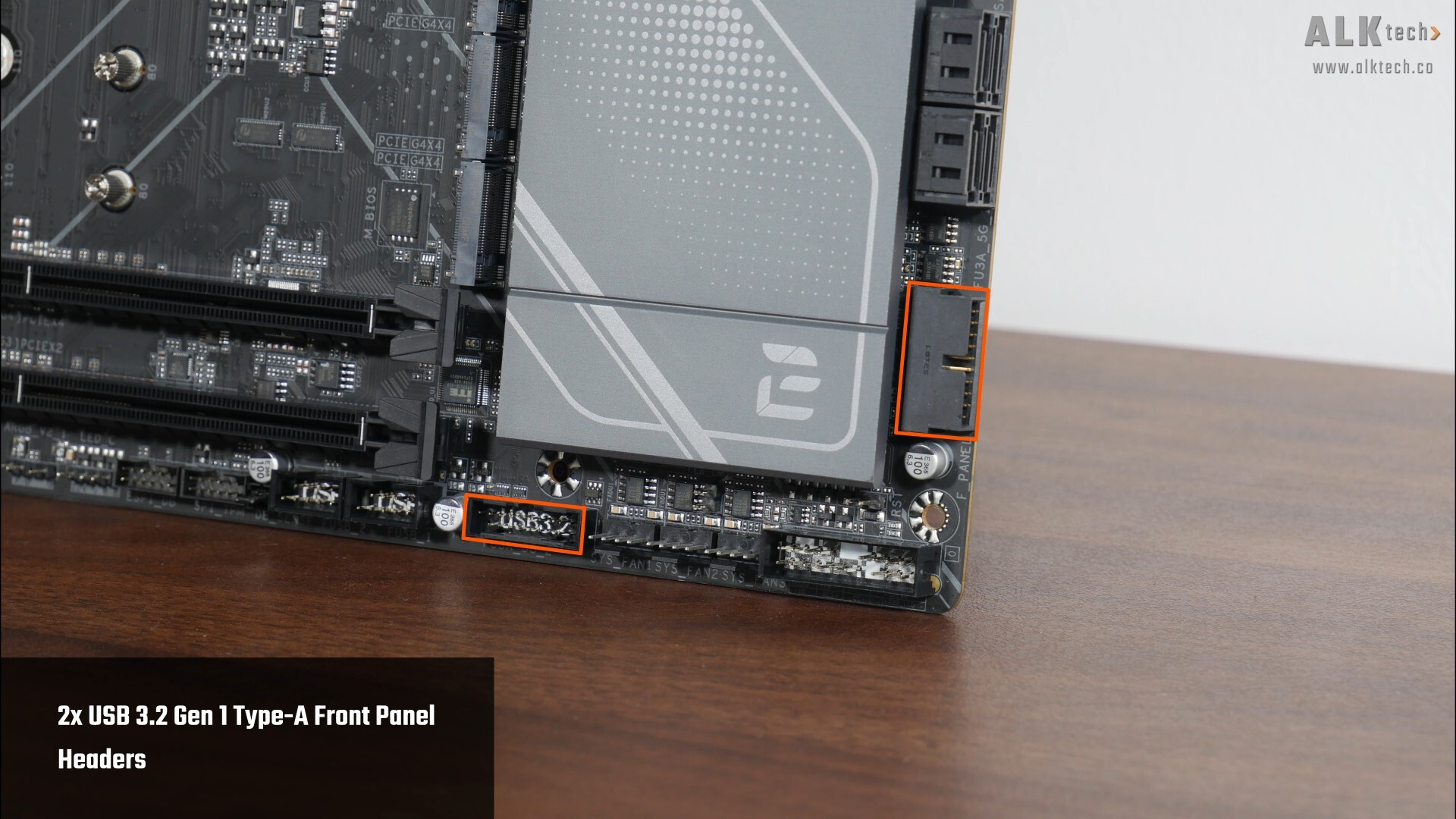

Closer to the bottom section of the board, we also get two USB 3.2 Gen 1 Type-A front panel headers that each provide for up to two USB 3.2 Gen 1 Type A ports, for a total of four ports. Also on hand are two USB 2.0 front panel headers along the bottom edge of the board, with each header providing support for two USB 2.0 Type A ports, for a total of four ports.

Expansion Slots & Storage Options

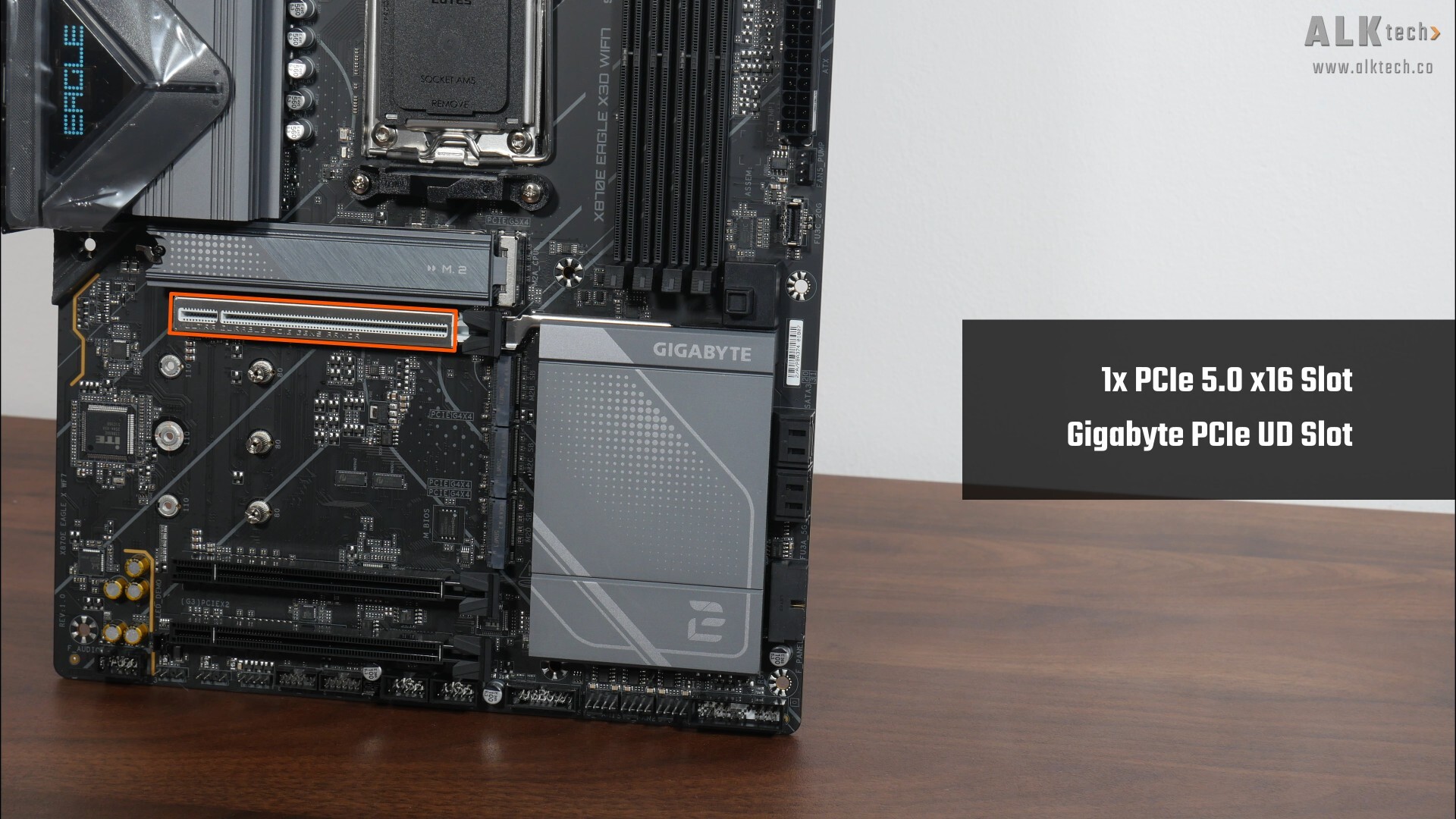

For your graphics card, the X870E EAGLE X3D WIFI7 comes with a single PCIe 5.0 x16 slot for a graphics card – the said slot sports Gigabyte’s PCIe UD Slot design that reinforces the slot for use with heavy graphics cards.

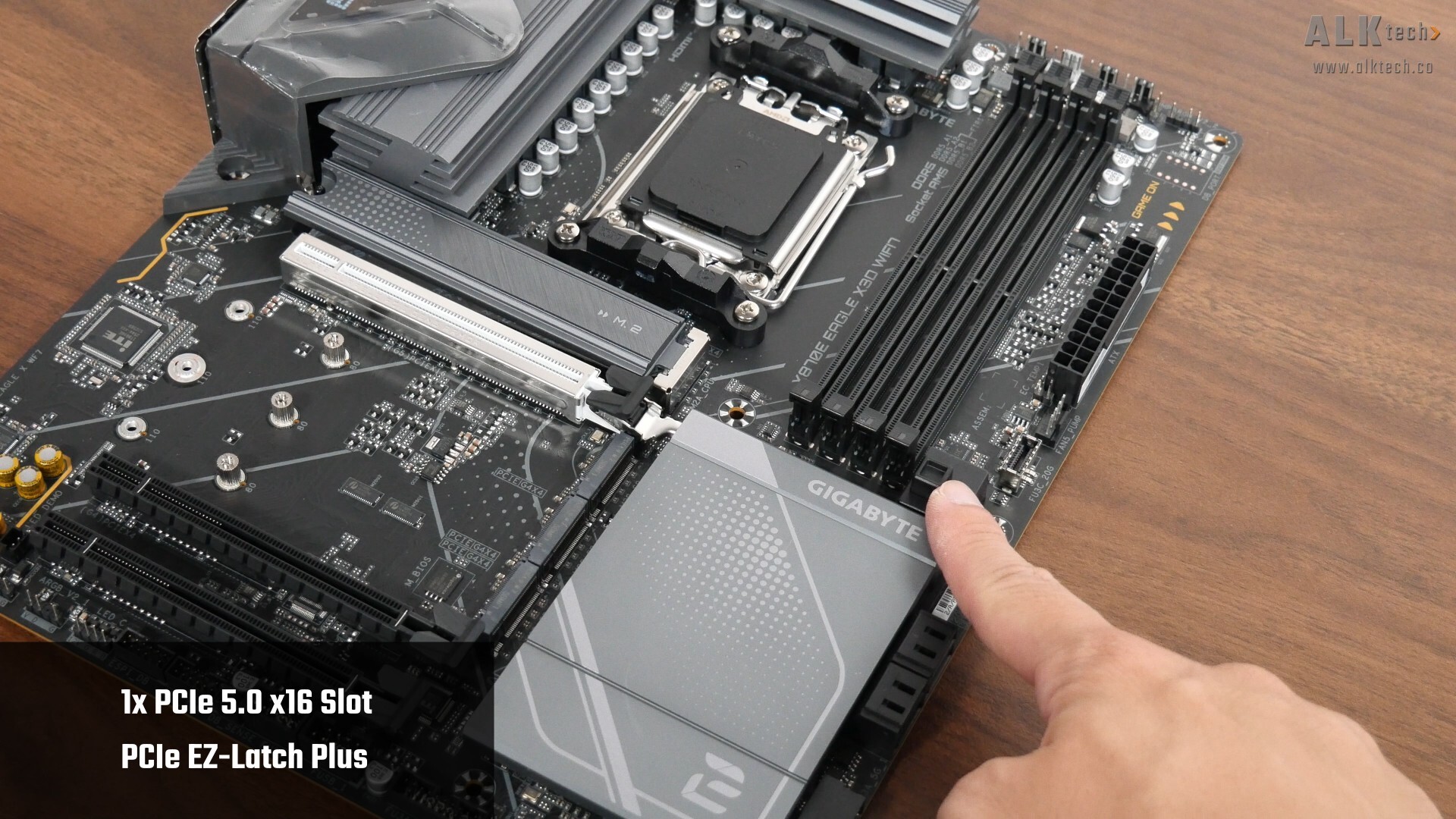

As can be seen, the slot also comes with the PCIe EZ Latch Plus feature that helps make removing a graphics card from the slot less of a painful affair.

Moving on, we do also get a full-length PCIe 4.0 x16 slot that operates at x4 mode, and a full-length PCIe 3.0 x16 slot that operates at x2 mode.

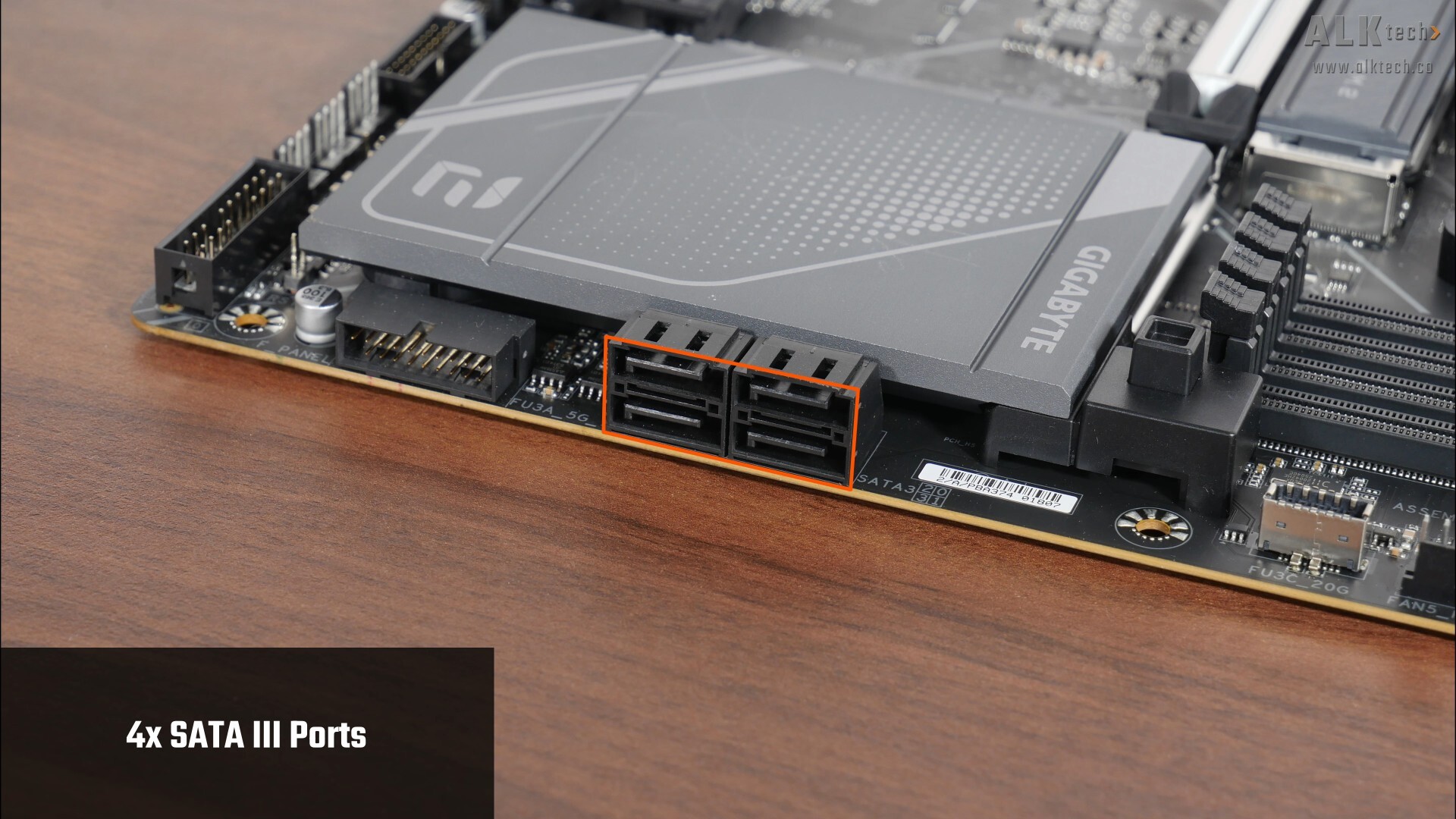

In the storage department, Gigabyte's included four SATA III ports, with all ports in a right-angled configuration so as to aid with cable management.

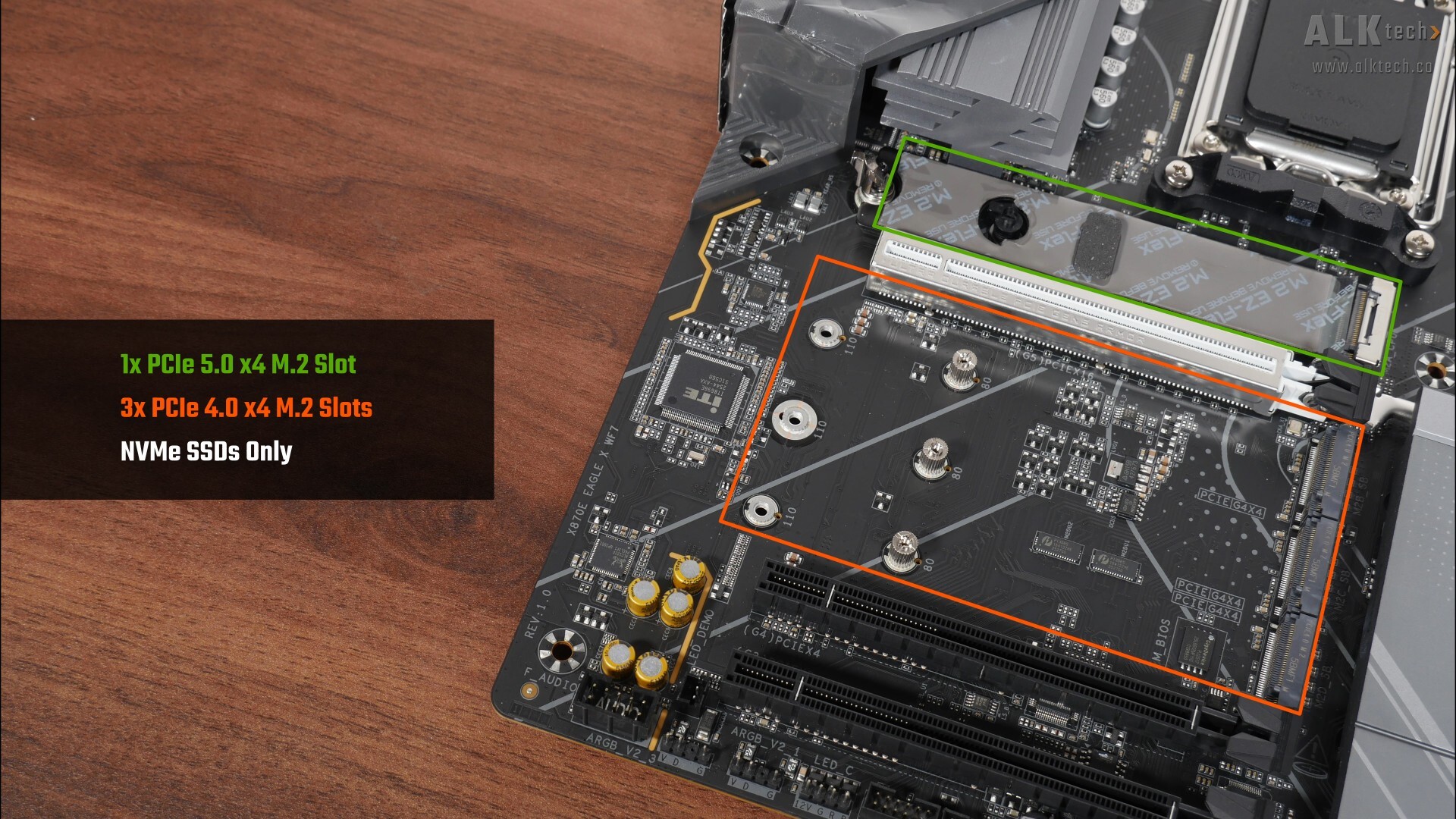

For M.2. slots, the board comes with one PCIe 5.0 x4 M.2 slot and three PCIe 4.0 x4 M.2 slots. Do note that all four of these slots support NVMe SSDs only, M.2 SATA drives will not work in any of these slots.

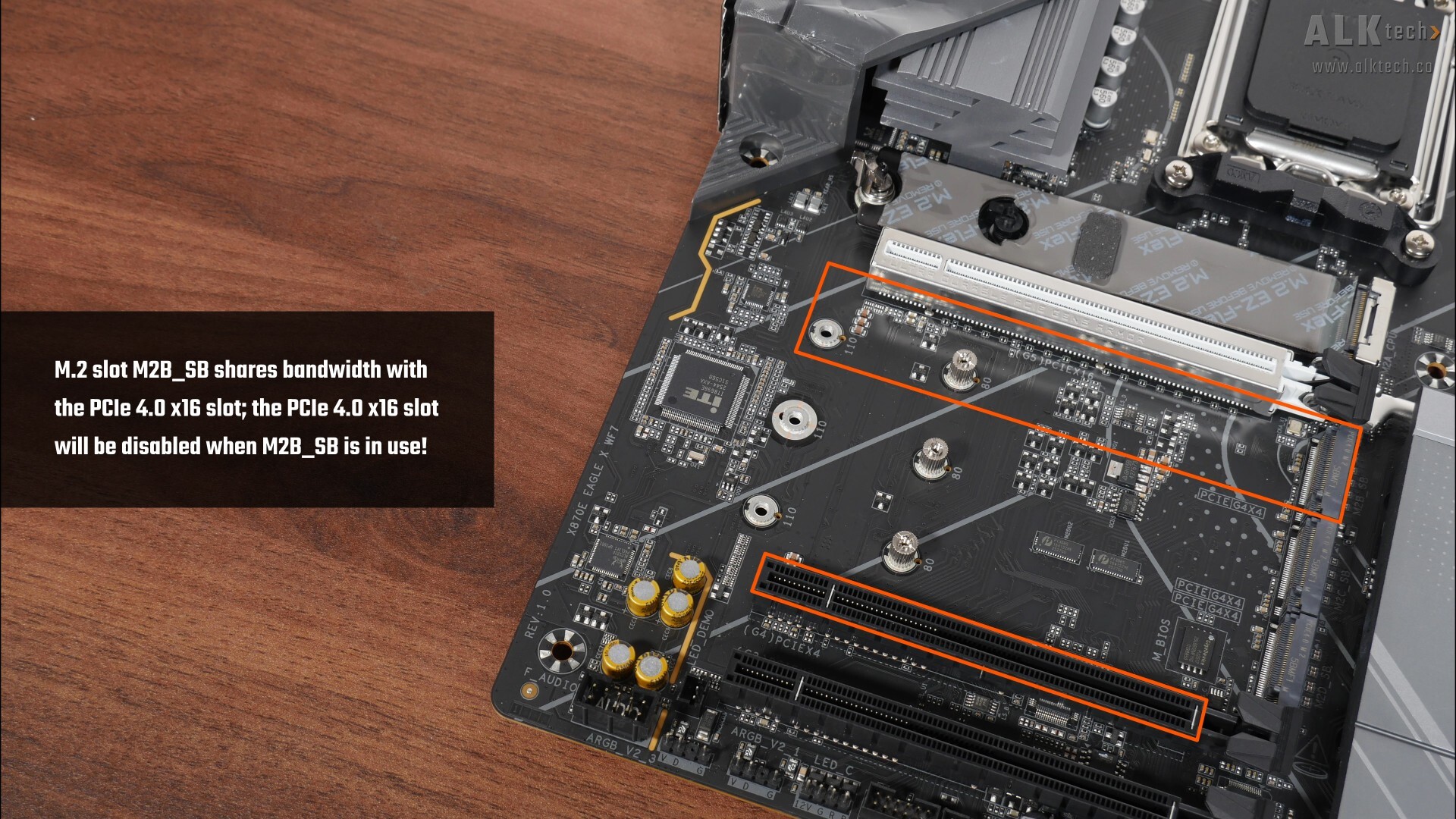

We do get some form of PCIe lane-sharing with this motherboard, where the second M.2 slot, M2B_SB, which is a PCIe 4.0 x4 M.2 slot, shares bandwidth with the PCIe 4.0 x16 slot that runs at x4 mode – if you’ve got a M.2 drive installed in slot M2B_SB, the PCIe 4.0 x16 slot that runs at x4 mode will be disabled entirely.

Once again, do bear in mind that PCIe 5.0 is supported only with a Ryzen 9000 series or Ryzen 7000 series processor installed –the Ryzen 8000 series of APUs and CPUs only support the PCIe 4.0 standard.

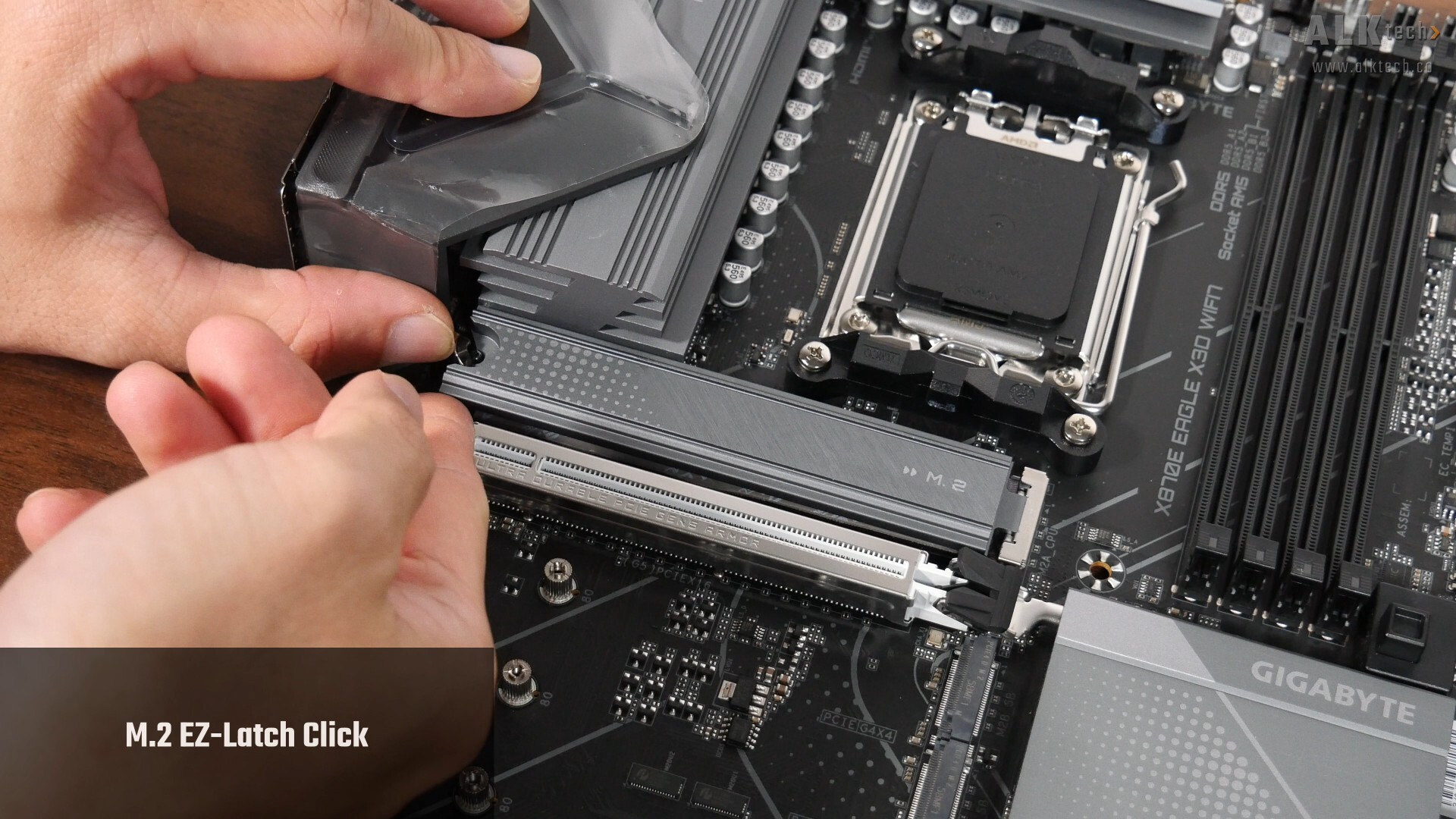

We do get some quality-of-life features for the primary PCIe 5.0 x4 M.2 slot. First up, the M.2 heatsink for this slot features a tool-less design called M.2 EZ-Latch Click, which makes removing and installing the heatsink pretty straightforward.

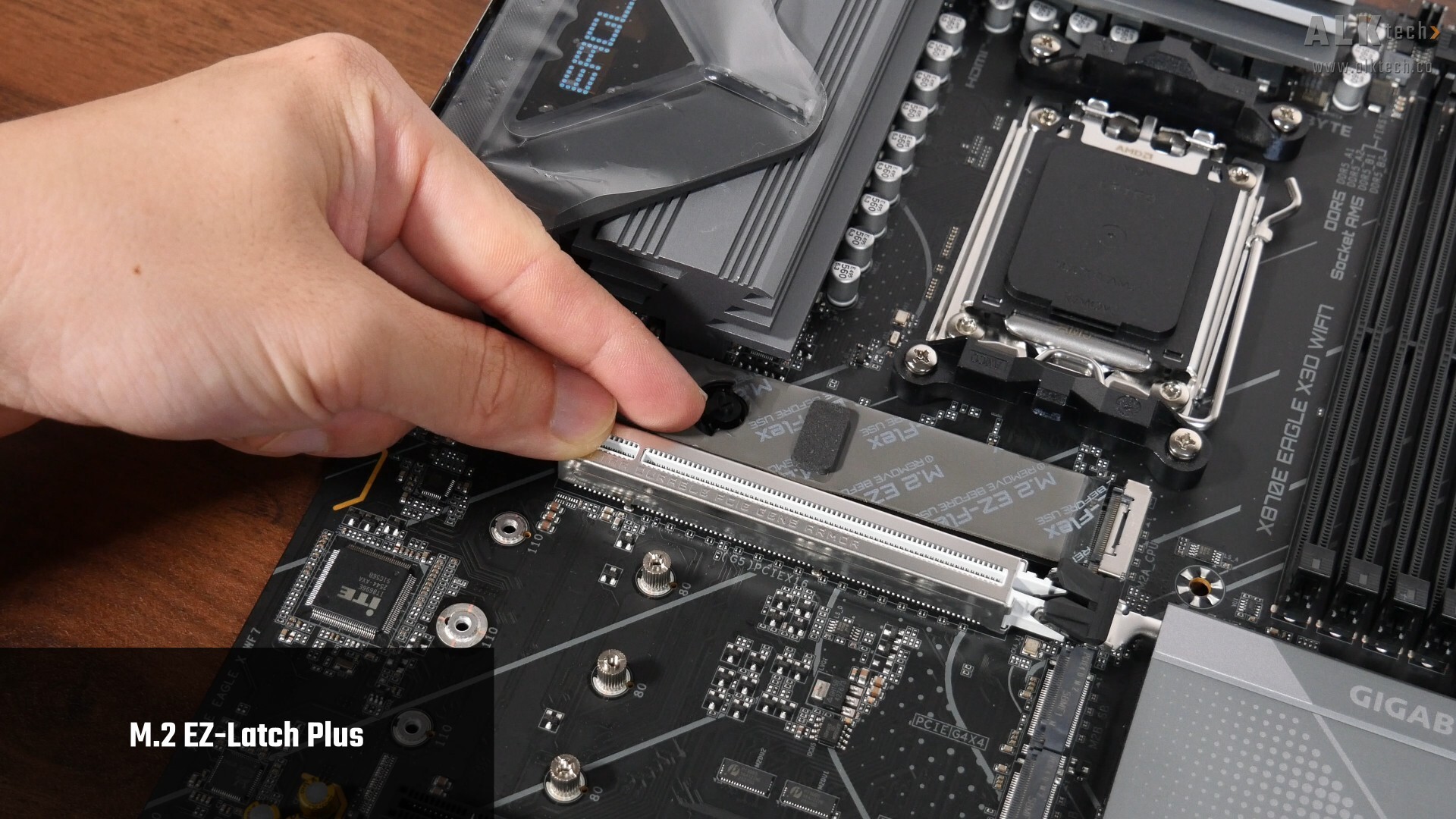

We’ve also got M.2 EZ-Latch Plus with this slot, which makes the installation and removal of a M.2 drive from the slot pretty easy thanks to a latch mechanism that holds the M.2 drive in place.

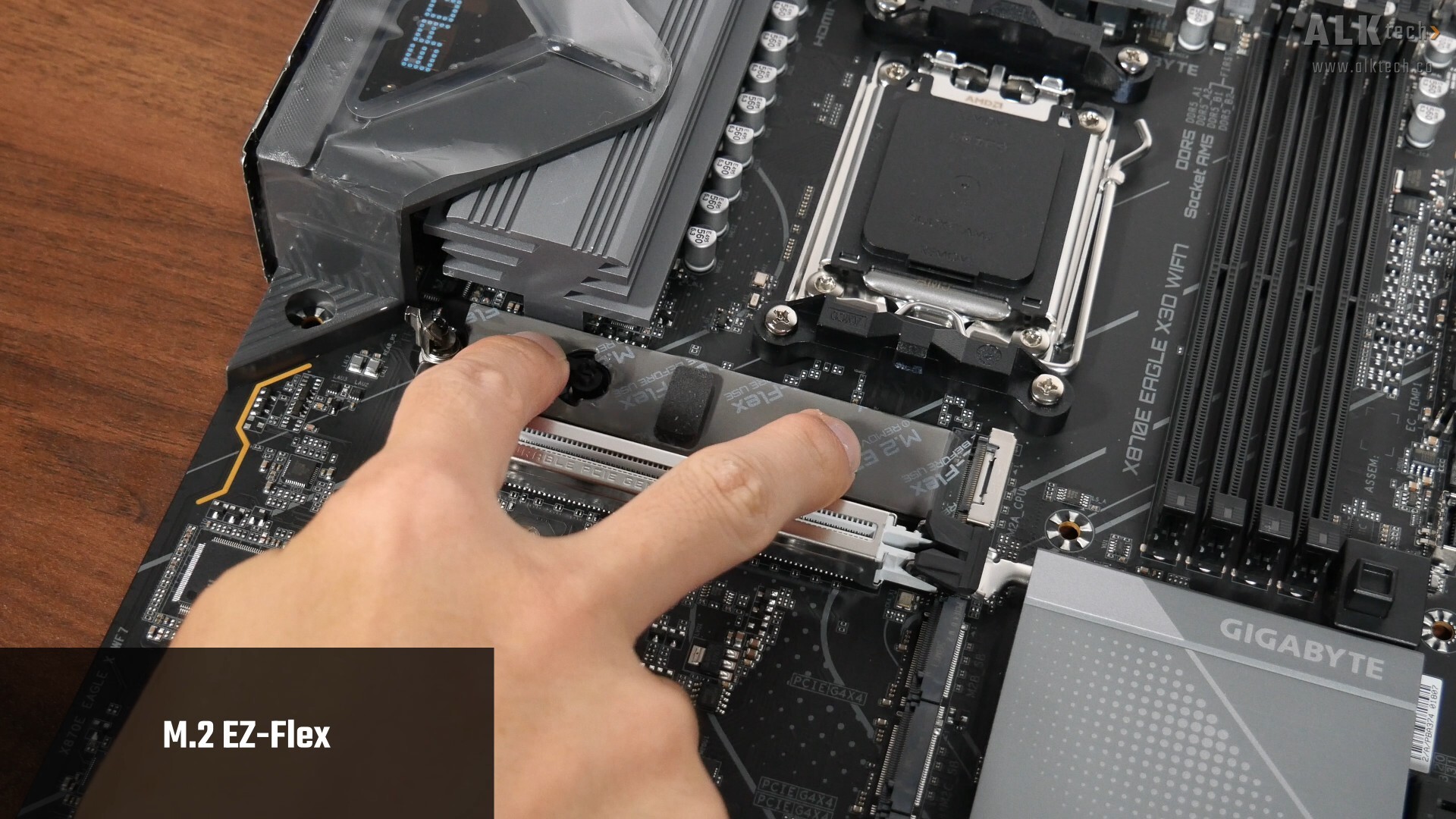

Finally, we’ve also got another feature called M.2 EZ Flex, which is a thermal pad on an elastic base that can help to improve contact between the SSD and the heatsink – definitely a good feature to have on hand for sure, seeing how toasty Gen 5 M.2 drives can get!

Audio & Internet Connectivity

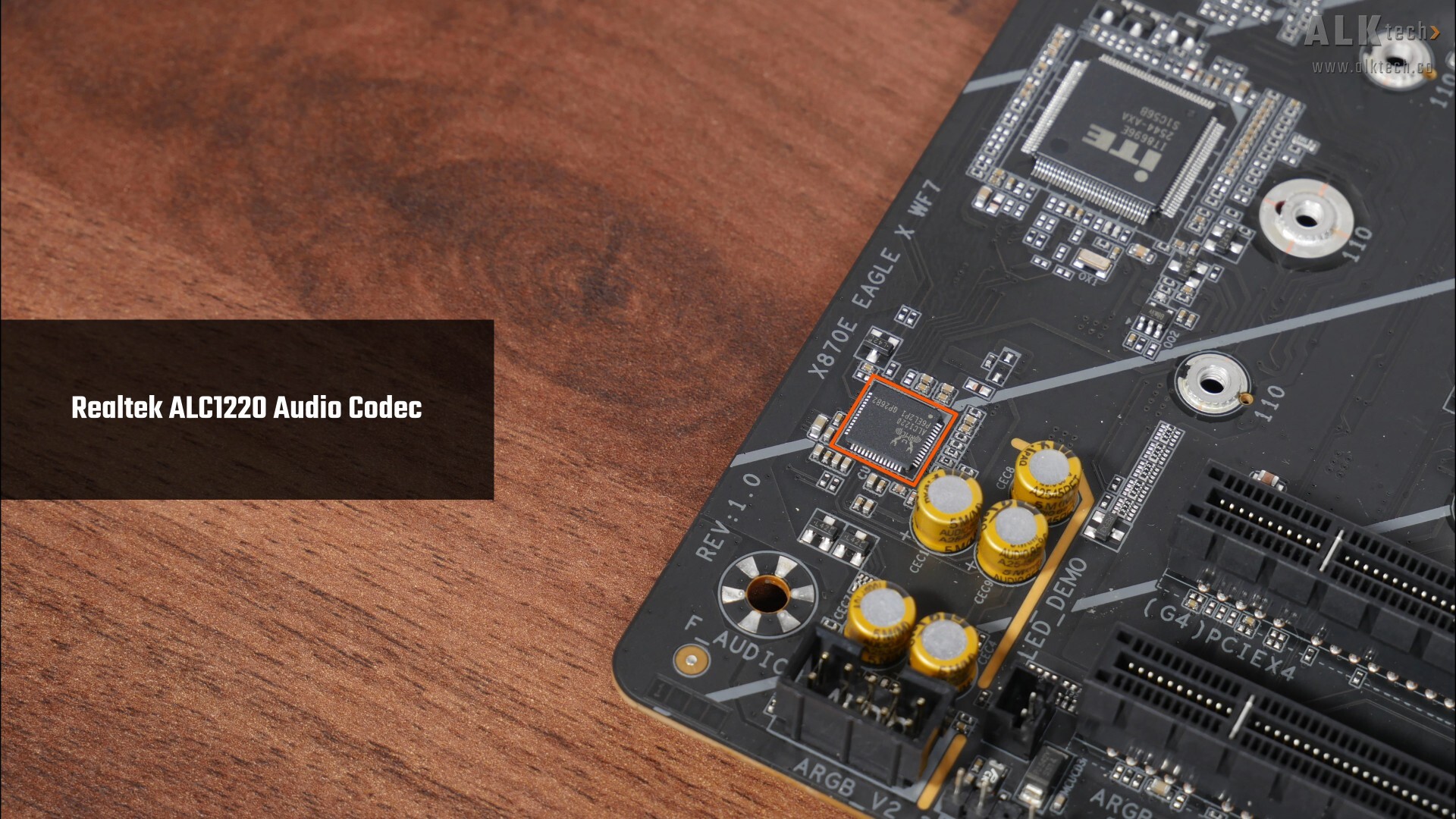

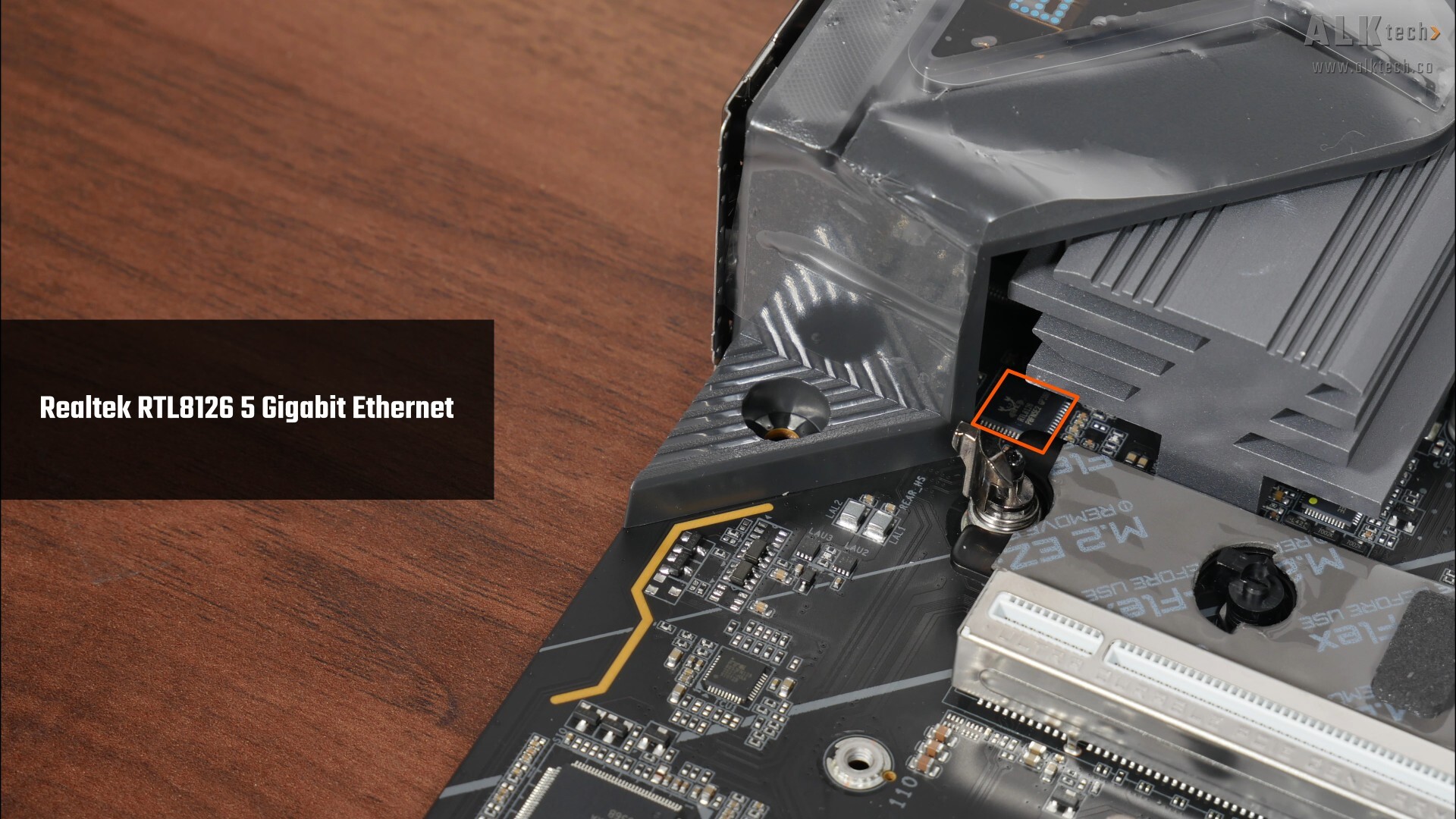

For audio, Gigabyte's included a higher-end Realtek ALC1220 audio codec, while in terms of wired internet connectivity, we’ve got a Realtek RTL8126 chip that provides support for 5 Gigabit Ethernet. Wireless internet connectivity on the other hand, is courtesy of a Qualcomm QCNCM865 WIFI 7 part that supports the full-fat 320 MHz channel width, where the module also serves up Bluetooth 5.4 support.

Fan & RGB Headers

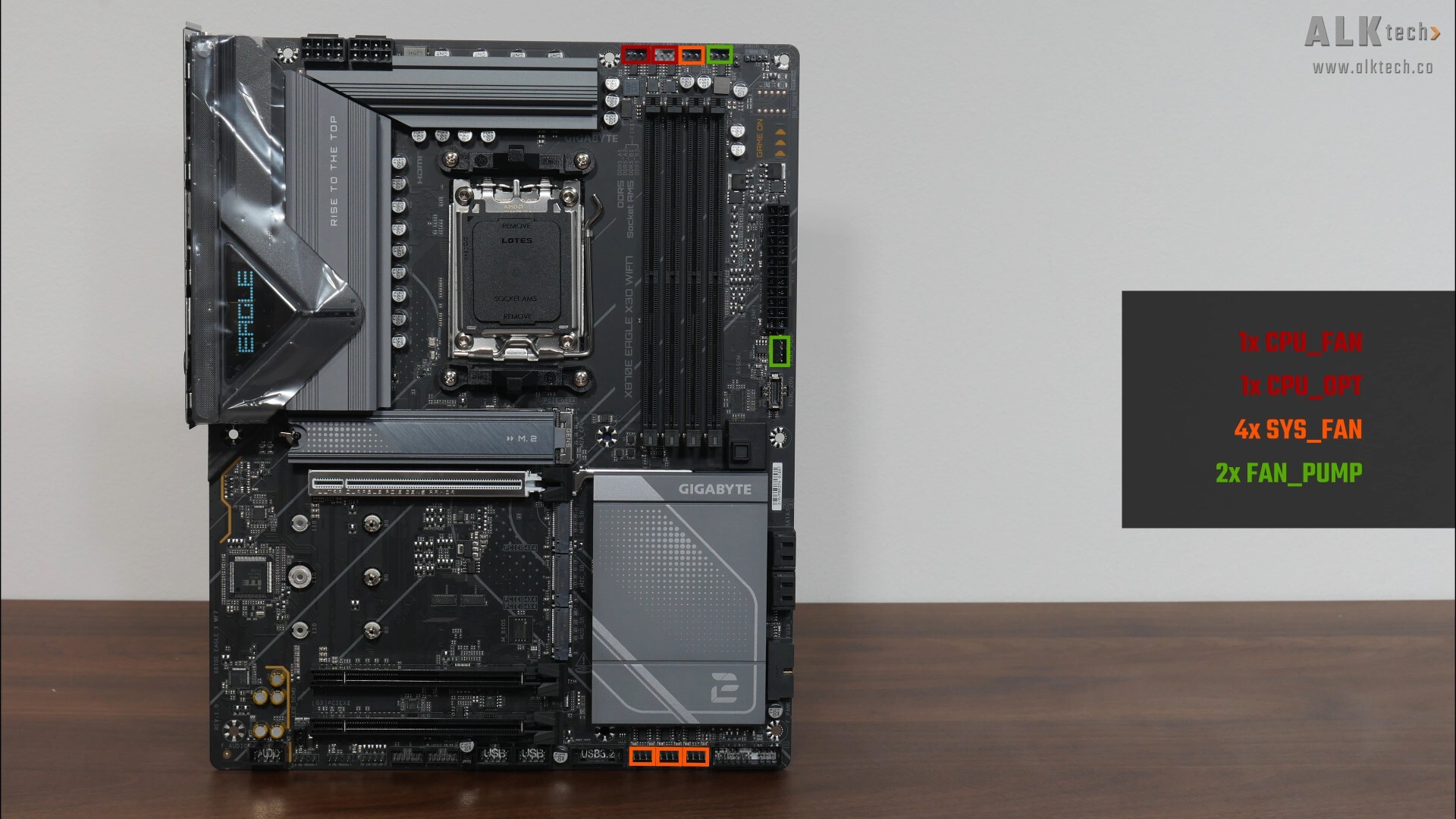

The X870E EAGLE X3D WIFI7 comes with eight fan headers:

• 1x CPU_FAN
• 1x CPU_OPT
• 4x SYS_FAN
• 2x FAN_PUMP

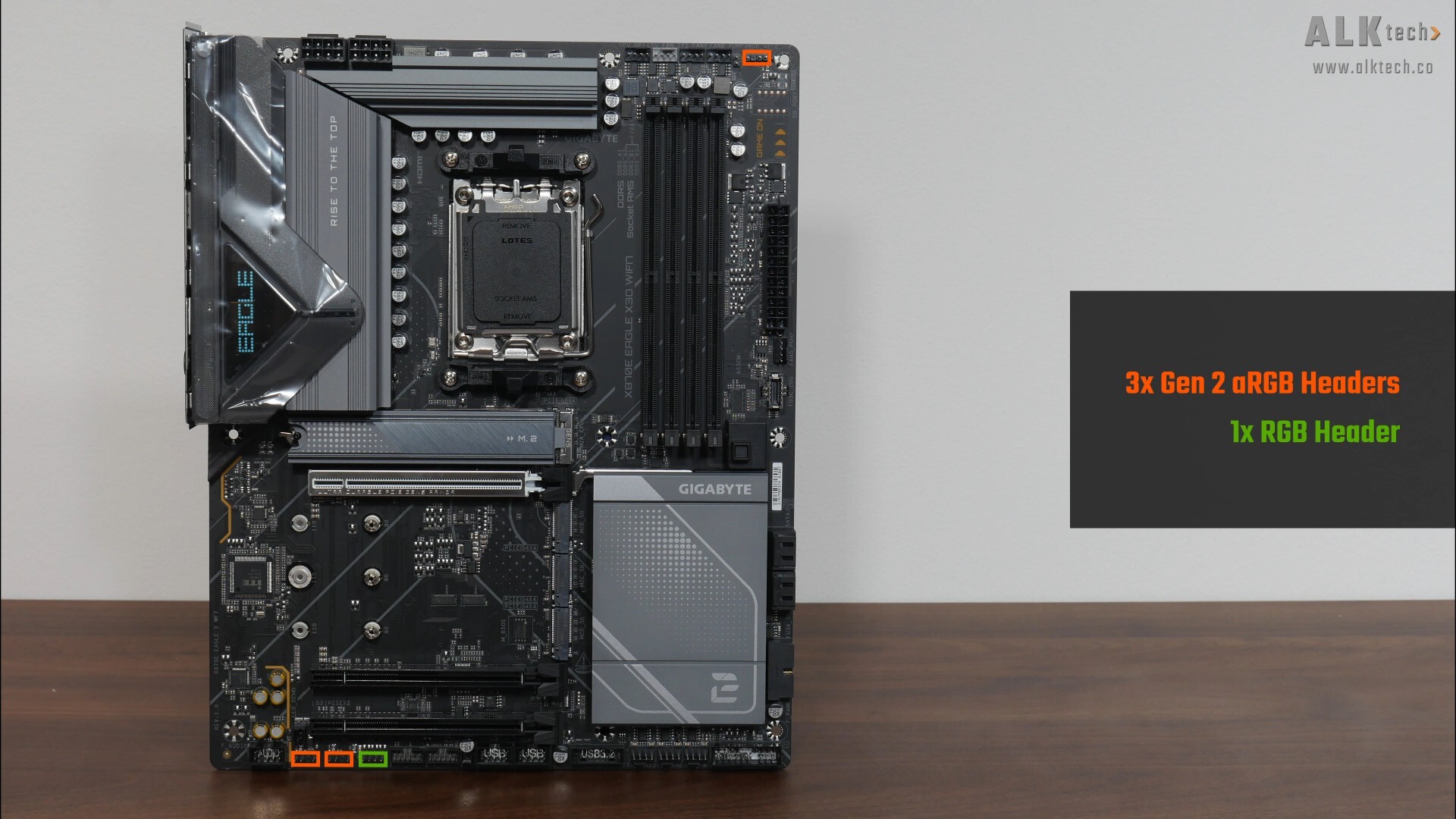

Also included are three Gen 2 addressable RGB headers and a single 12V RGB header as indicated above.

Other Features

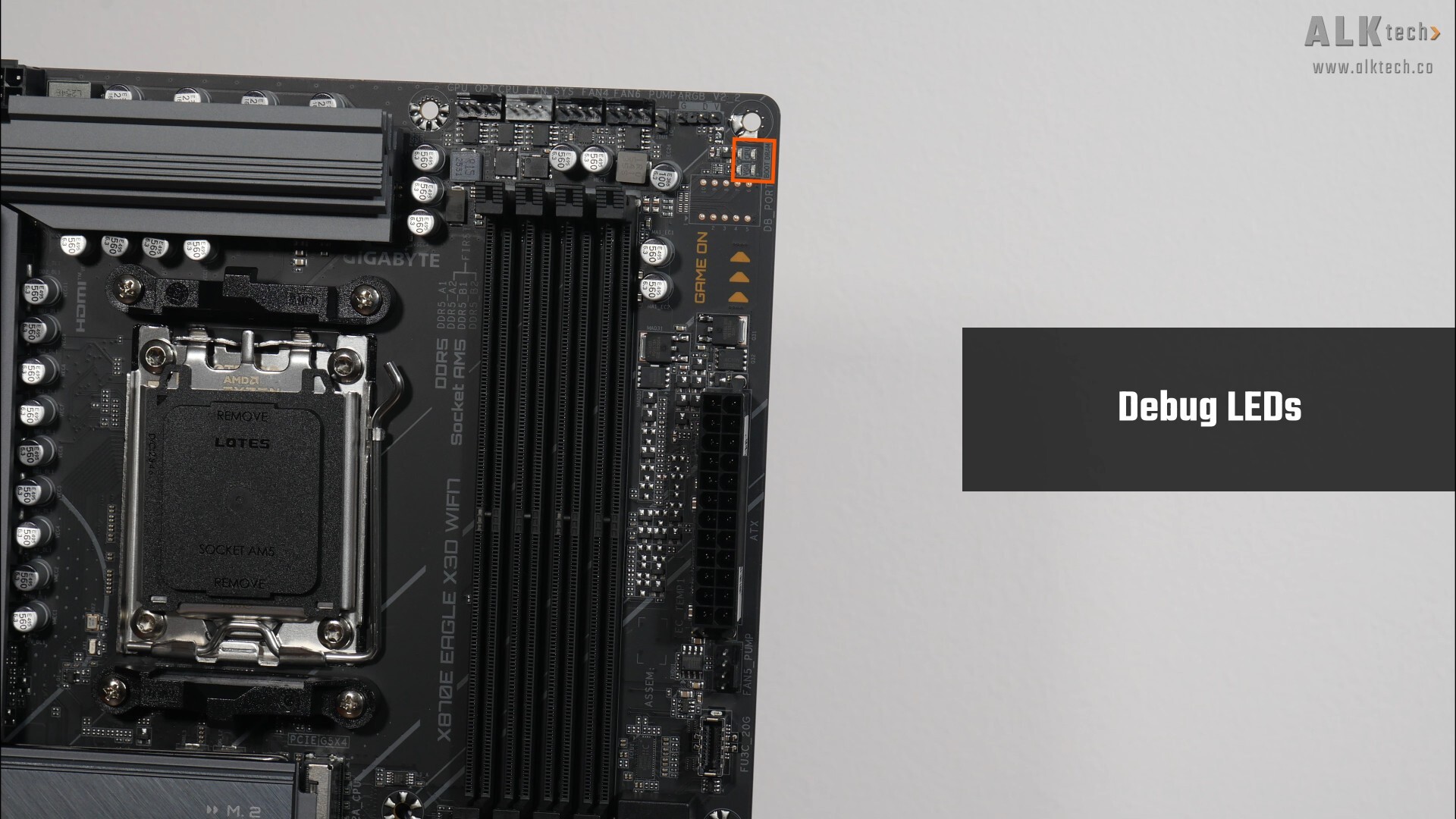

Some interesting features to highlight, back at the top of the motherboard, we get a set of Debug LEDs that can help with troubleshooting PC start-up issues.

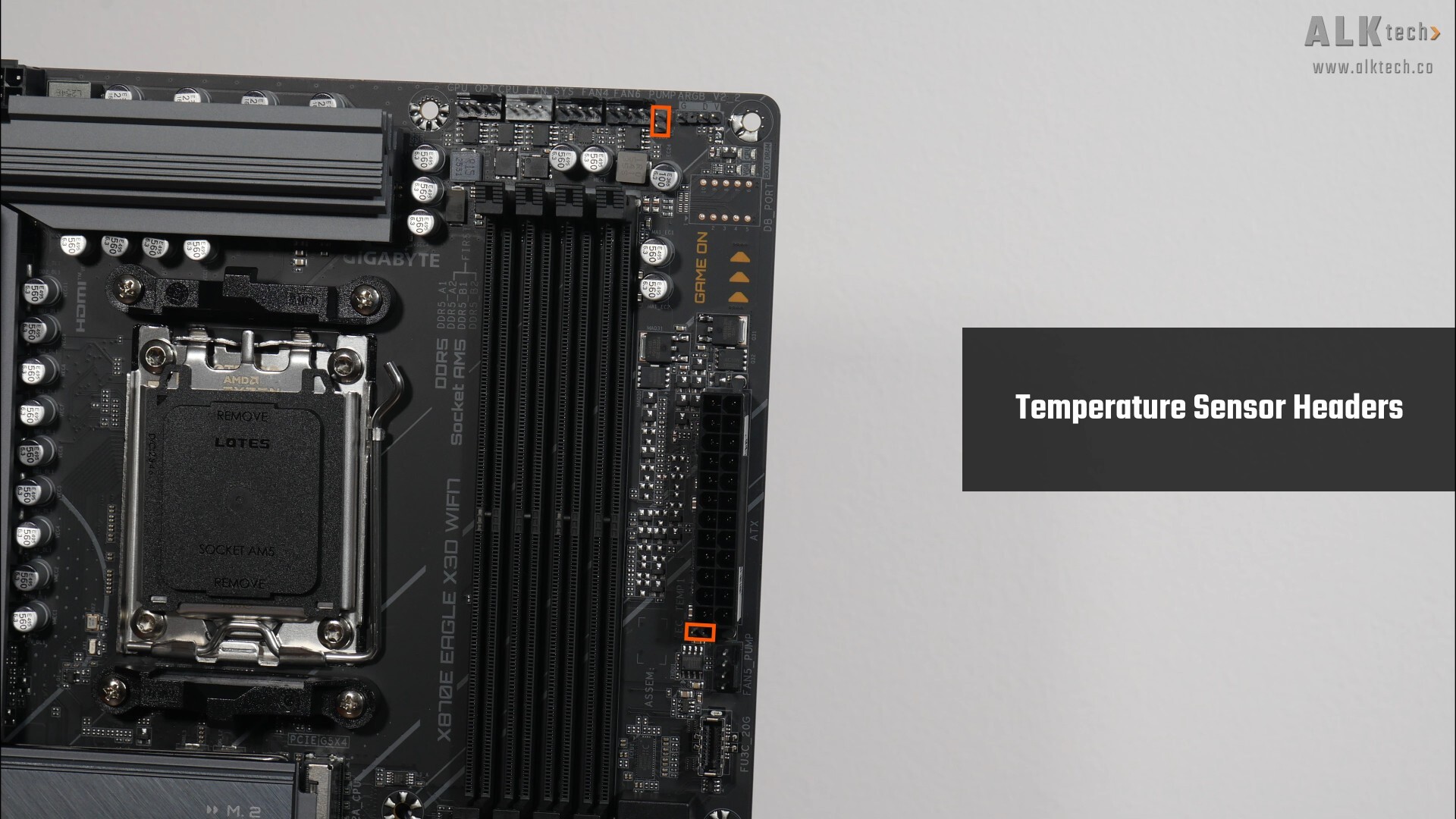

We also get two temperature sensor headers that can be hooked up to optional thermistor cables to monitor the temperature of devices within your PC case.

Along the bottom edge of the board, we get a TPM header for an optional discrete Gigabyte TPM module, alongside a noise detection header that can be hooked up to an optional noise detection cable to monitor noise levels inside the PC case.

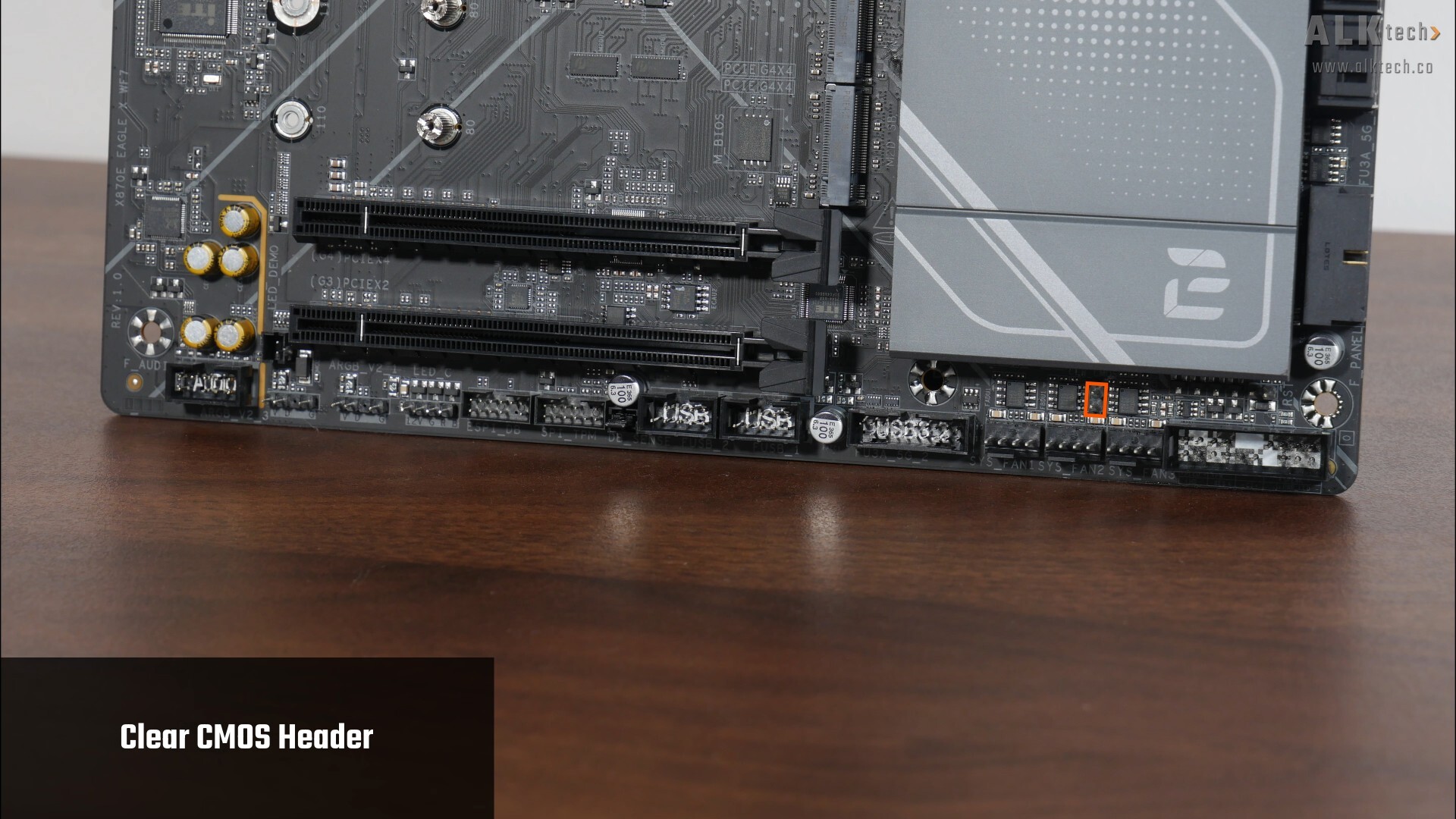

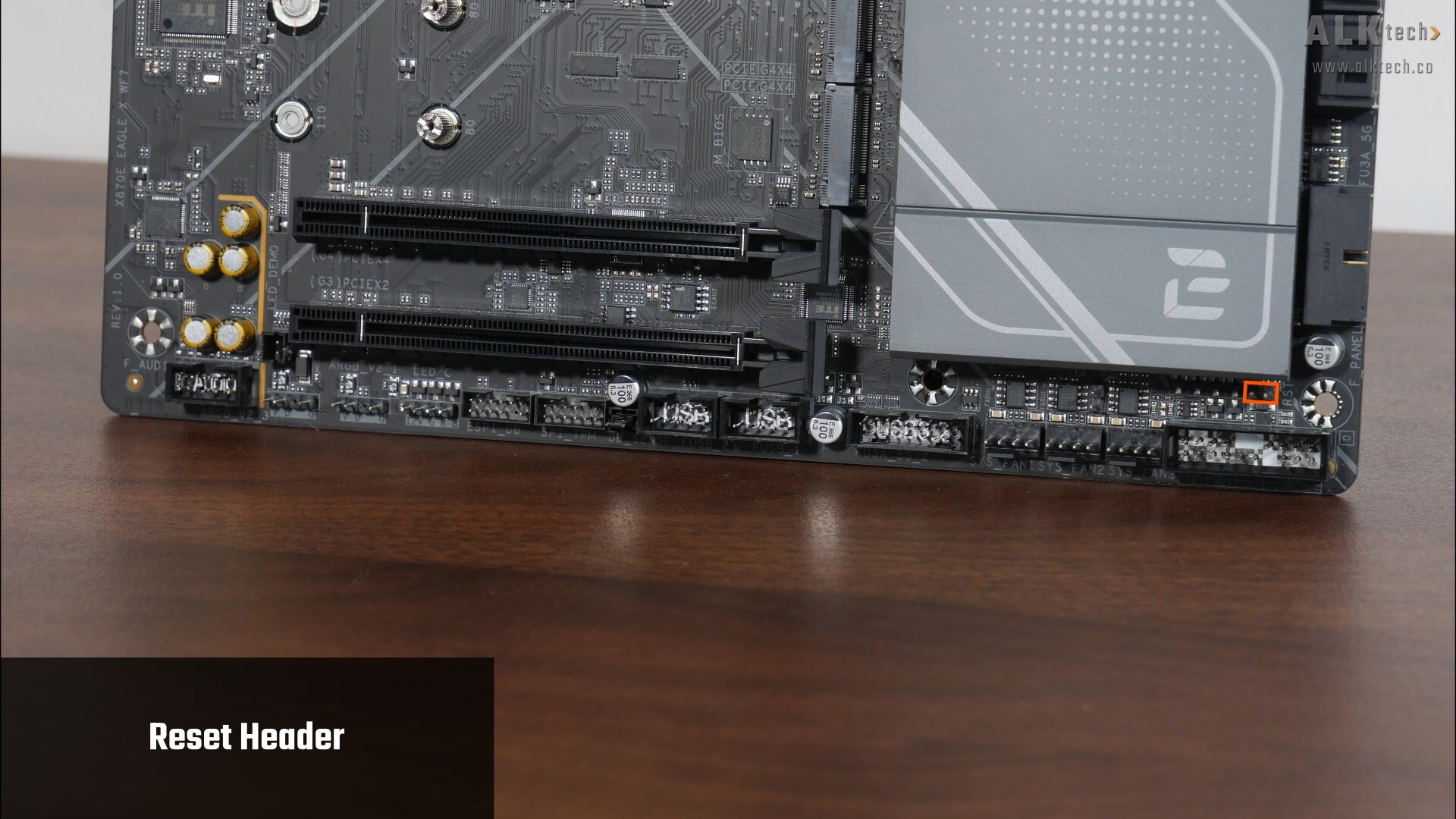

Rounding things off in the headers section is a Clear CMOS header, as well as a reset header that's in addition to the reset leads that you already get with the front panel header.

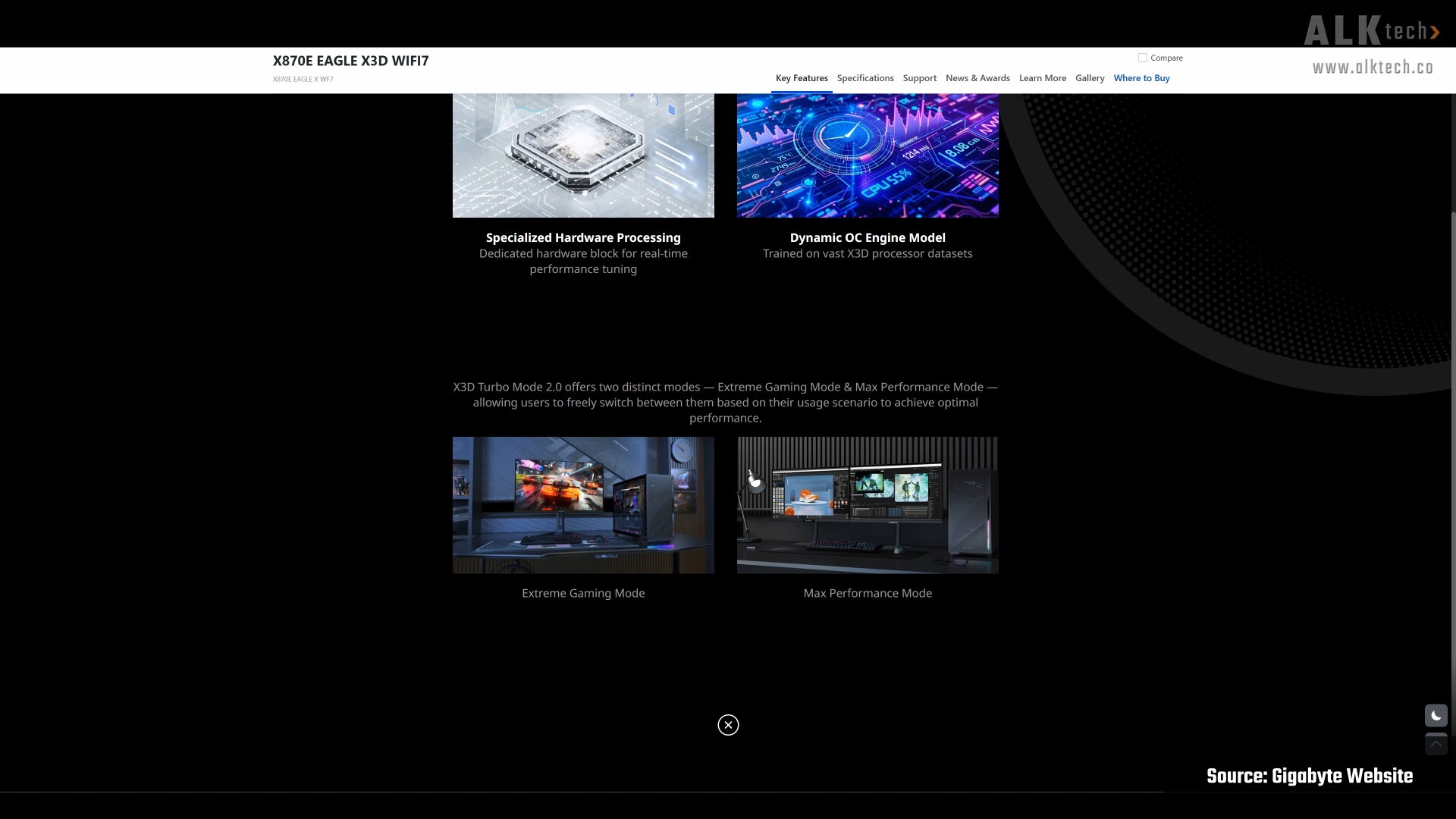

A feature that Gigabyte's new X870E X3D motherboards have is "X3D TURBO MODE 2.0". According to their marketing spiel, this feature can boost the performance of AMD’s gaming-oriented Ryzen X3D chips with just a click in the BIOS. As per what can be found on Gigabyte’s website, we get a “Max Performance” and “Extreme Gaming” setting that can be enabled from within the BIOS, where they basically apply a set of pre-determined overclocking values to your processor (e.g. a certain amount of increase in max boost clock, the application of a certain value of curve optimiser and so on). For the “Extreme Gaming” setting in particular, from what I understand, it’ll disable simultaneous multithreading (SMT for short) as well, which can help with gaming performance on AMD’s X3D processors.

Rear I/O

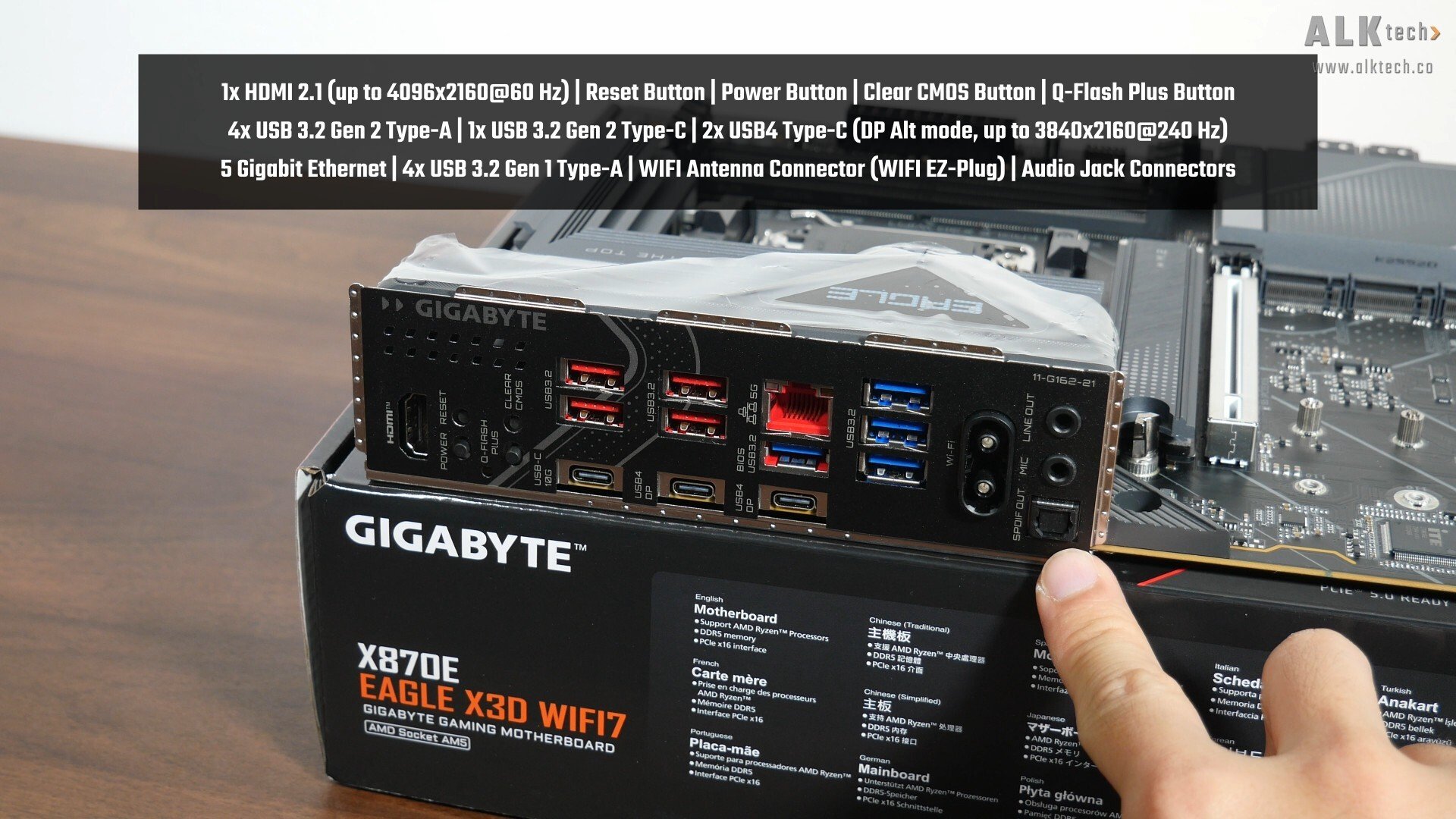

The X870E EAGLE X3D WIFI7 comes with an integrated I/O shield design, where the I/O shield comes with parallelogram-shaped ventilation openings. The following ports can be found on the rear I/O:

• 1x HDMI 2.1 port (supports a maximum display resolution of 4096x2160 at 60 Hz)
• Reset button
• Power button
• Clear CMOS button
• Q-Flash Plus button
• 4x USB 3.2 Gen 2 Type-A ports
• 1x USB 3.2 Gen 2 Type-C port
• 2x USB4 Type-C ports (both ports support DisplayPort Alt mode, with support for a maximum display resolution of up to 3840x2160 at 240 Hz)
• 5 Gigabit Ethernet port
• 4x USB 3.2 Gen 1 Type-A ports
• WIFI antenna connector (WIFI EZ-Plug)
• Audio jack connectors

The Q-Flash Plus feature allows end-users to update the motherboard's BIOS without needing to install a processor, RAM and graphics card - this feature will come in handy especially since AMD's next-generation "Zen 6" processors are likely to be compatible with this board with just a BIOS update, that is, when "Zen 6" eventually launches.

Conclusion & Pricing

To sum up, the Gigabyte X870E EAGLE X3D WIFI7 is an interesting motherboard offering, in that it has premium features in a no-frills package, making this board really suitable for you folks who want a high-end motherboard that simply gets the job done without any bling or fuss.

Features wise, we get a decent VRM setup that should handle the entirety of AMD’s “Zen 5” processor line-up with ease, full-fat WIFI7 that supports the 320MHz channel width and 5 Gigabit Ethernet, on top of all the other features that one would come to expect of a high-end AM5 motherboard offering, such as PCIe 5.0 support for a graphics card and a M.2 drive, dual USB4 ports, along with a whole bunch of quality-of-life features such as EZ-Latch Plus and so on.

One thing to note though, you do only get a single PCIe 5.0 x4 M.2 slot, which is atypical of a X870E motherboard, though as a result of this, the primary PCIe 5.0 x16 slot for a graphics card, the lone PCIe 5.0 x4 M.2 slot as well as the USB4 controller do not share PCIe lanes with any other devices.
